Rugged Edge Servers and Workstations

GAP Series

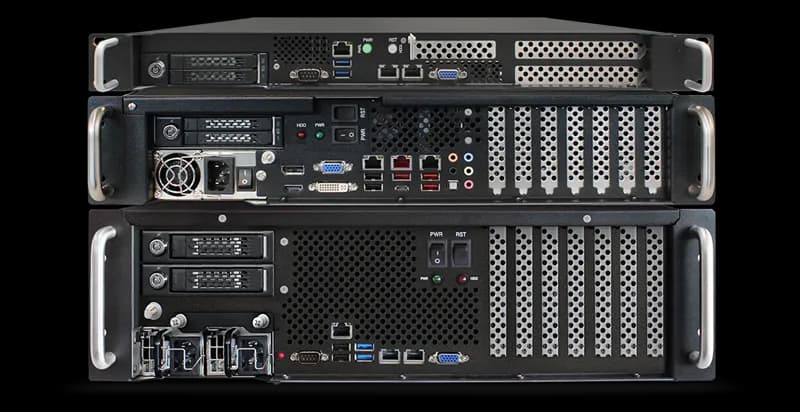

GAP is a line of Rugged Edge Servers and Workstations, specifically designed for Edge applications that demand a robust MIL-GRADE certified computing platform capable of operating in critical environments. These systems feature an aluminium construction and a rugged design, ensuring durability and performance in extreme conditions typical of Edge computing scenarios.

Models Available

5^th/4^th Gen Intel Xeon Scalable Processors

1U – 2U

3^rd Gen Intel Xeon Scalable Processors

1U – 2U – 3U

2^nd Gen Intel Xeon Scalable Processors

1U – 2U – 3U

14^th/13^th Gen Intel Core

1U – 2U

Intel Xeon W / Intel Core

1U – 2U

Intel Xeon E / Intel Core

1U – 2U – 3U

Intel Xeon E3 / Intel Core

1U – 2U – 3U

Models Available

5^th/4^th Gen Intel Xeon Scalable Processors

1U – 2U

3^rd Gen Intel Xeon Scalable Processors

1U – 2U – 3U

2^nd Gen Intel Xeon Scalable Processors

1U – 2U – 3U

14^th/13^th Gen Intel Core

1U – 2U

Intel Xeon W / Intel Core

1U – 2U

Intel Xeon E / Intel Core

1U – 2U – 3U

Intel Xeon E3 / Intel Core

1U – 2U – 3U

Servers and Workstations Architectures

GAP series Edge Servers and Workstations are based on the latest Intel^® architectures. Server versions include 5^th Gen. Intel^® Xeon^® Scalable Processors, 4^th Gen. Intel^® Xeon^® Scalable Processors, 3^rd Gen. Intel^® Xeon^® Scalable Processors, 2^nd Gen. Intel^® Xeon^® Scalable Processors and Intel^® Xeon^® E5 Broadwell-EP.
Server versions are available in single and dual socket architecture. Workstation versions go up to Intel^® Xeon^® W-1200 and 11^th Gen. Intel^® Core™ i7/i5/i3 Processors.

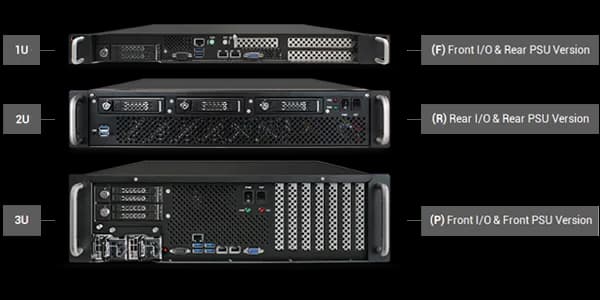

Layout Versions

GAP series Edge Servers and Workstations are designed for 19″ rack mounting and available in 1U, 2U and 3U version with a depth of 450mm and 510mm.

Three different configurations are available:
(R) with rear I/O and rear power supply
(P) with front I/O and rear power supply
(F) with front I/O and front power supply

Low Profile Cards Versions

GAP Rugged Edge Servers & Workstations are also available in 2U version for low profile cards installed in vertical position. This space saving configuration come with 355mm and 450mm depth and offer up to seven slots.

MIL Versions

GAP series Edge Servers and Workstations can be equipped with MIL grade connectors. You may decide to have the motherboard I/O ports and power input provided with MIL connectors or, if you prefer, a circular connector on power input only.

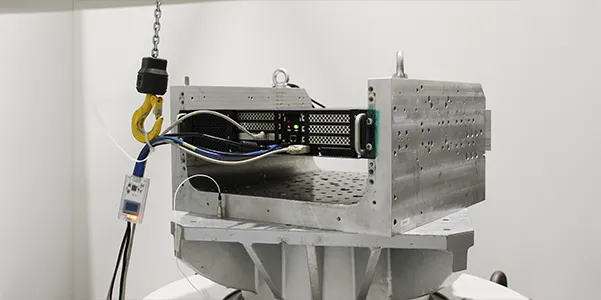

Qualifications & Test

GAP Edge Servers and Workstations are MIL-STD-810F qualified for temperature, humidity and shock, MIL-STD-167-1A for vibrations and may have optional MIL-STD-461 compliance. Additional test and certifications can be carried out on request.
