GAP-151P-G7 Series1U Rugged Workstation
8th/9th Gen Intel® Core™ & Xeon® E Processors
Overview
GAP is a line of high performance rugged workstations designed for applications that require a robust MIL-GRADE certified computing platform, suitable for operating in critical environments. Gen. 7 rugged workstations feature Intel® Xeon® E-2200/2100 or 8th/9th Gen. Intel® Core™ i3 (Coffee Lake) processors supporting up to 8 Cores (16 thread with Hyper-Threading), 16MB Smart Cache, up to 128GB DDR4 memory with or without ECC and up to 16 PCIe 3.0 lanes. The integrated IPMI services support monitoring, control, and management functions sending alarm notifications in case of critical events. GAP servers are MIL-STD-810F qualified for temperature and shock, MIL-STD-167-1A for vibrations and can optionally conform to MIL-STD-461.
System Features

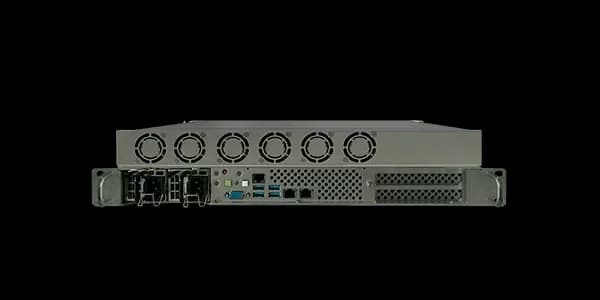

Mechanical Features
Environmental Features
