XRS 3U-IP S8 SOLO SeriesExtreme Rugged Edge Servers with IP54 protection rate

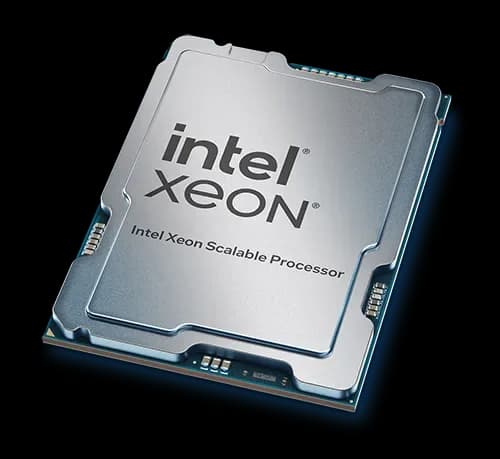

5th/4th Gen Intel® Xeon® Scalable Processors
Overview
XRS 3U-IP S8 SOLO delivers rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events.

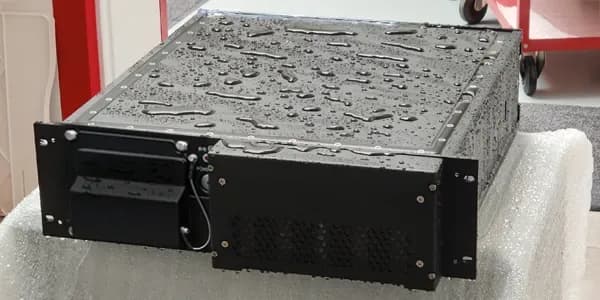

XRS 3U-IP S8 SOLO Extreme Rugged Server has an IP54 protection rate and features a 3U milled aluminium chassis designed to provide superior resistance. The unit is equipped with MIL-grade connectors for I/O ports and for power input.

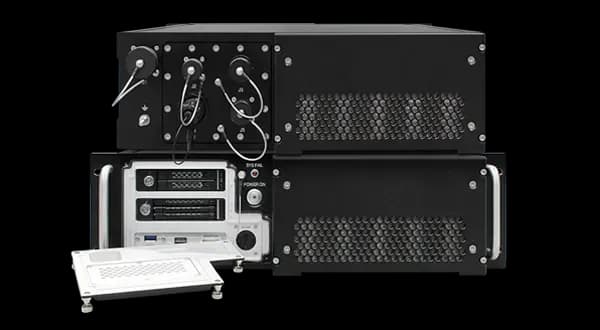

XRS 3U-IP S8 SOLO can host up to five full-size PCIe boards including GPU, FPGA modules, and any other high-performance PCI Express board. The front panel includes VGA, IPMI LAN, USB 3.2, and a removable battery holder. Two 3.5” drive bays can host up to six removable SSDs.
Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.
System Features
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module
Removable:
Up to 4x U.2 NVMe SSD or Up to 6x 2.5” SATA SSD
2x 10GbE with RJ45 connectors
2x USB 3.2 ports
3x PCIe 5.0 x8
Mechanical Features
Depth 530mm including MIL grade connectors on I/O ports and power input
Height 132mm – 3U rack
Environmental Features
Shock (functional): 20g, 11ms terminal peak saw-tooth, three pulses on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
Shock (transportation): 40g, 11ms terminal peak saw-tooth, three pulses on each direction (516.7 Procedure I)
Vibrations (functional): MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle)
Vibrations (transportation): MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
Fungus: Conformal coating on request
