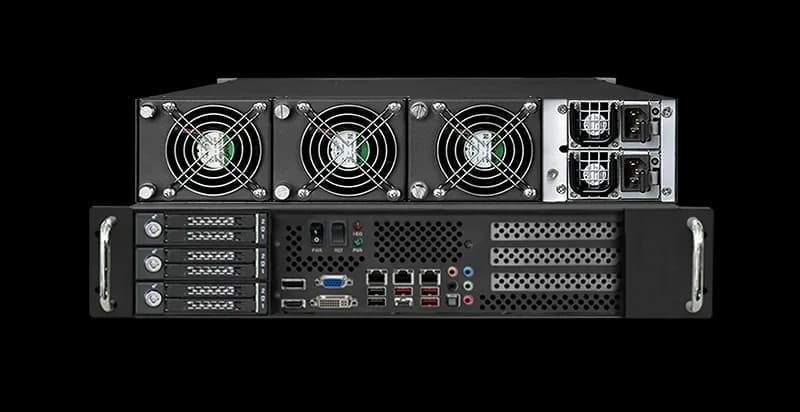

GAP-245F-W9 Series2U Rugged workstation with 14th generation Intel Core processor
GAP-245F-W9 is a rugged 2U 19-inch rack workstation with an aluminum chassis, front I/O, rear power input, and 14th/13th generation Intel Core processors, qualified to MIL-STD-810, MIL-STD-461, and MIL-STD-167-1A.
Overview
GAP is a family of rugged aluminum servers and workstations for edge applications requiring a MIL-GRADE certified computing platform for critical environments.
GAP W9 workstations use 14th/13th generation Intel® Core™ i9/i7/i5/i3 processors, delivering high performance, improved energy efficiency, and support for AI and high-speed connectivity. Integrated IPMI provides monitoring, control, and management, with alarm notification on critical events, for system integrity in remote environments.
GAP workstations meet MIL-STD-810F and MIL-STD-167-1A for shock, temperature, and vibration resistance, with optional MIL-STD-461 EMI/EMC compliance and MIL-grade connectors on power and I/O inputs.
System Features
3x M.2 PCIe 4.0 x4
Form Factor: 2280; M.2 Key: M-Key (RAID 0, 1, 5)
Removable:
Up to 3x 2.5” SAS SSD or
Up to 6x U.2 NVMe SSD or
Up to 9x 2.5” SATA SSD
1x RJ45 Gigabit Ethernet LAN ports
1x RJ45 2.5 Gigabit Ethernet LAN port
(available on the front panel)
DC Redundant Power Supply – Optional Single

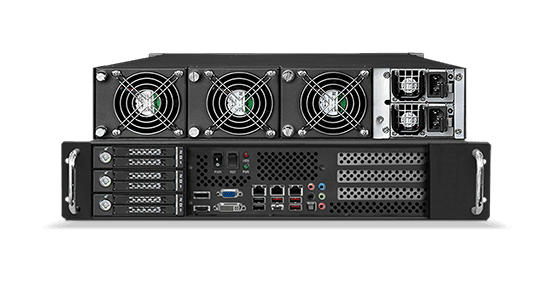

Mechanical Features
Environmental Features
MIL-STD-810H, Method 501.7 Procedure II & 502.7 Procedure II (combined)
MIL-STD-810H, Method 501.7 Procedure III & 502.7 Procedure II (combined)
MIL-STD-810H, Method 507.6 Procedure II (aggravated)
Operating Vibrations: MIL-STD-167-1A, Type I, 4h per axis
Not Operating Vibrations: 1.17 Grms, 5-500 Hz – 60 min for each axis
Not Operating Vibrations: MIL-STD-810H, Method 514.8 Procedure I
Operating Shocks: 20g / 11ms – half-sine, functional shock three pulses on each direction
Operating Shocks: MIL-STD-810H, Method 516.8 Procedure I
