Overview

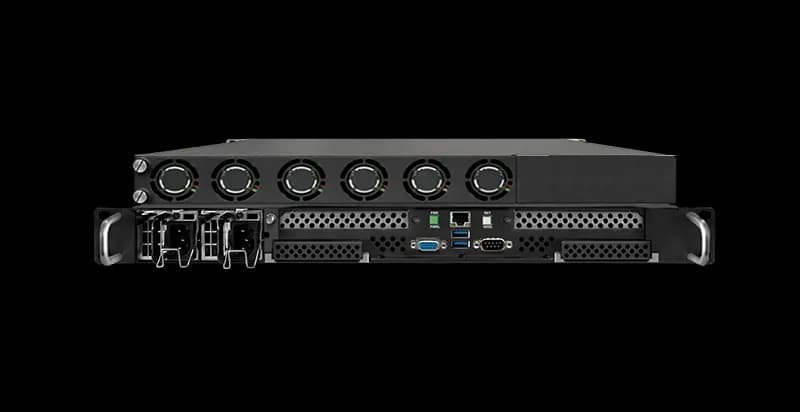

GAP is a line of alluminum rugged Servers designed for applications that require a robust MIL-GRADE certified computing platform, suitable for operation in critical environments.
GAP S7 Series Rugged Servers feature single and dual socket 3rd Gen. Intel® Xeon® Scalable Processors (Ice Lake) offering a balanced architecture with built-in AI acceleration and advanced security capabilities, up to 4TB DDR4-3200 RAM, 64 lane PCIe Gen 4 per CPU, a 7% higher socket-to-socket bandwidth.
GAP S7 Series Rugged Servers are MIL-STD-810F qualified for temperature and shock, MIL-STD-167-1A for vibrations and can optionally conform to MIL-STD-461.

DOWNLOAD DATASHEET
System Features

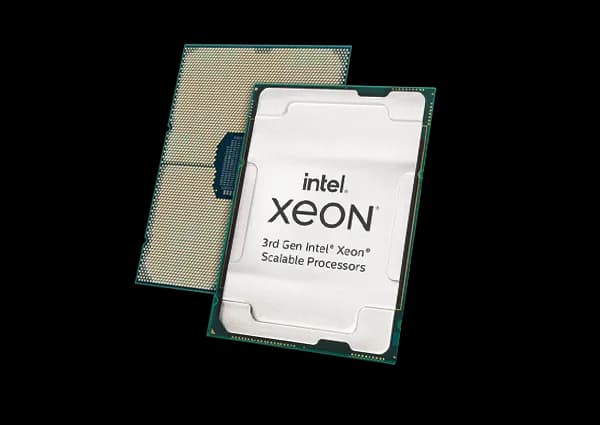

CPU 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) max 205W TDP
Memory Up to 4TB ECC RDIMM, DDR4-3200MHz; 16 DIMM slots
Chipset Intel® C621A
Graphics ASPEED AST2600 BMC
Network Connectivity 1x Dedicated IPMI LAN port
Dual or Quad port
GbE/10GbE/25GbE/100GbE OCP NIC 3.0 with RJ45 or SFP connectors
Storage Internal:
2x M.2 NVMe; M-Key, 2280
1x Disk on Module
1x 2.5” U.2 NVMe / SATA / SAS SSD
TPM 1 TPM Header
Motherboard I/O shield Available on the front: 1x VGA, 2x USB 3.0, 1x IPMI LAN; 1x COM
Expansion slots 1x PCIe 4.0 x16 FHHL
Operative Systems Windows® 10 IoT Enterprise 64bit, Windows® Server 2016 64bit; Windows® Server 2019 64bit; RHEL 8.4 64bit;
Ubuntu 20.04.2 LTS SVR 64bit; CentOS 7.9 64bit
IPMI IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote Monitoring Monitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health)
Power Supply AC Redundant Power Supply – Optional Single
DC Redundant Power Supply – Optional Single
Mechanical Features

Dimensions
(W x H x D)
483 x 44 x 450 mm
Material Aluminum with surface passivation treatment
Colour Black / RAL 9005 – Powder Coating
Mounting 1U 19” rackmount chassis
Optional Telescopic slides
Configuration Front I/O – Front Power Supply
Front Panel Leds / Buttons Power On/Off button with LED
Reset button with LED
Drive Bays 1x 2.5” internal
Fans 6x removable PWM fans

Dimensions
(W x H x D)
483 x 44 x 450 mm
Material Aluminum with surface passivation treatment
Colour Black / RAL 9005 – Powder Coating
Mounting 1U 19” rackmount chassis
Optional Telescopic slides
Configuration Front I/O – Front Power Supply
Front Panel Leds / Buttons Power On/Off button with LED
Reset button with LED
Drive Bays 1x 2.5” internal
Fans 6x removable PWM fans

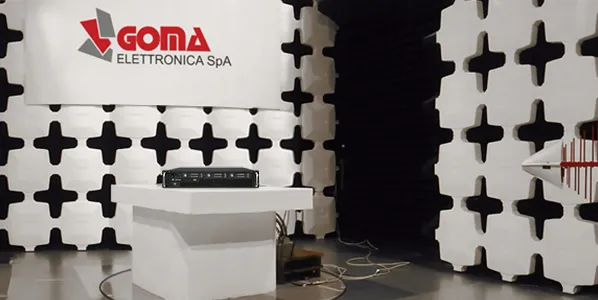

Environmental Features

Operating Temperatures 0°C to +50°C
MIL-STD-810H, Method 501.7 & 502.7
-20°C to +60°C (depending on configuration)
Storage Temperature -40°C to +70°C
MIL-STD-810H, Method 501.7 & 502.7
Humidity 5% – 95% non-condensing
MIL-STD-810H 507.6
Operating Vibrations MIL-STD-167-1A, Type I
Not Operating Vibrations 1.17 Grms, 5-500 Hz
MIL-STD-810H, Method 514.8
Operating Shocks 20g / 11ms – half sine
MIL-STD-810G, Method 516.7
EMC Directive 2014/35/UE-LVD | Directive 2014/30/UE-EMC | Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006 | MIL-STD-461G (on request)
