Overview

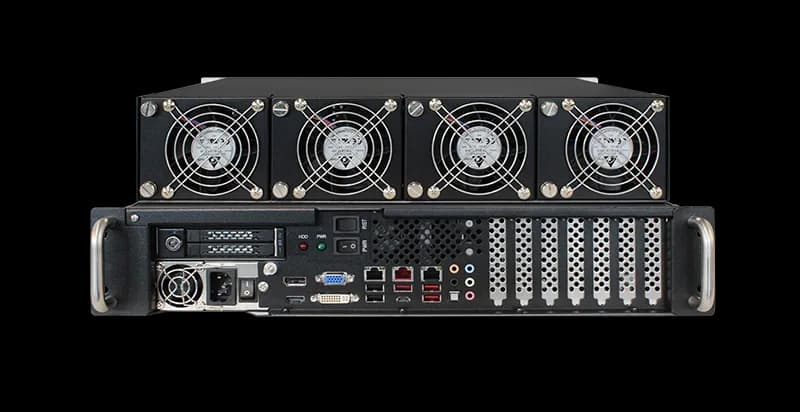

GAP is a product family of rugged aluminium servers and workstations designed for Edge applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments. The GAP W9 Series Rugged Edge Workstations are designed for Edge applications where environmental conditions are typically critical, demanding durable and reliable computing infrastructure. These workstations feature 14th/13th Gen. Intel® Core™ i9/i7/i5/i3 Processors, harnessing state-of-the-art computing innovations to deliver exceptional performance, improved energy efficiency, and robust support for advanced AI capabilities and high-speed connectivity. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events, which is essential for maintaining system integrity in remote and harsh environments.
Built to meet MIL-STD-810F standards for temperature and shock resistance, as well as MIL-STD-167-1A standards for vibration tolerance, GAP Rugged Edge Workstations ensure reliable operation under the challenging conditions often found at the Edge. Additionally, they can optionally be configured to comply with MIL-STD-461 standards for EMI/EMC, featuring MIL-grade connectors for either the power input or both the I/O connectors and power supply inputs, further enhancing their suitability for Edge applications.
DOWNLOAD DATASHEET
System Features

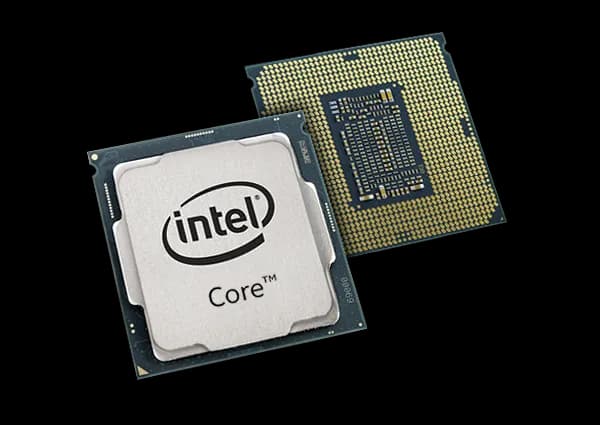

CPU 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 125W TDP
Memory 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
Chipset Intel® W680
Graphics 1 Aspeed AST2600 BMC port
Network Connectivity 1x RJ45 GbE Intel Ethernet i225LM
1x RJ45 GbE Intel PHY I219LM for AMT/vPro
Dedicated LAN for IPMI
Storage Internal:
3 x M.2 PCIe 4.0 x4
Form Factor: 2280; M.2 Key: M-Key (RAID 0, 1, 5)
Removable:
Up to 1x 2.5” SAS SSD or
Up to 2x U.2 NVMe SSD or
Up to 3x 2.5” SATA SSD
TPM 1x TPM Header
Motherboard I/O shield 3x USB 3.2, 1x USB 3.2 Type C; 2 x GbE, 1x IPMI LAN, Audio, HDMI, DVI-D, DP, VGA
(available on the front panel)
Expansion slots 2x PCIe 5.0 x16 slots (16/NA or 8/8)
2x PCIe 3.0 x4
1x 5V PCI 32bit
Operative Systems Windows® 11 IoT Enterprise, Windows® 10 IoT Enterprise, Windows® Server 2022, Debian Linux 11 (64-bit); Ubuntu Linux 18.04 LTS Server Edition (64-bit); Ubuntu Linux 20.04 LTS Server Edition (64-bit); Red Hat® Enterprise Linux® 8 Server
IPMI IPMI 2.0, SPM, Watchdog, SNMP and e-mail alarms and notifications
Remote Monitoring Monitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, RAID health, and memory health)
Power Supply AC Single Power Supply
DC Single Power Supply
Mechanical Features

Dimensions 483 x 88 x 356 mm (W x H x D)
Material Aluminum with surface passivation treatment
Colour Black / RAL 9005 – Powder Coating
Mounting 2U 19” rackmount chassis
Optional Telescopic slides
Configuration Front I/O – Front Power Supply
Front Panel Leds / Buttons / Connectors Power On/Off button with LED
Reset button with LED
Fans 4x removable PWM fans

Dimensions 483 x 88 x 356 mm (W x H x D)
Material Aluminum with surface passivation treatment
Colour Black / RAL 9005 – Powder Coating
Mounting 2U 19” rackmount chassis
Optional Telescopic slides
Configuration Front I/O – Front Power Supply
Front Panel Leds / Buttons / Connectors Power On/Off button with LED
Reset button with LED
Fans 4x removable PWM fans

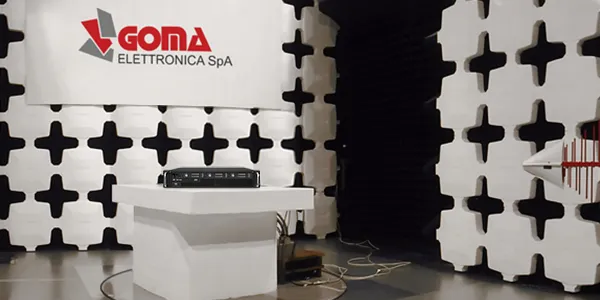

Environmental Features

Operating Temperatures 0°C to +50°C
MIL-STD-810H, Method 501.7 & 502.7
-20°C to +60°C (depending on configuration)
Storage Temperature -40°C to +70°C
MIL-STD-810H, Method 501.7 & 502.7
Humidity 5% – 95% non-condensing
MIL-STD-810H 507.6
Operating Vibrations MIL-STD-167-1A, Type I
Not Operating Vibrations 1.17 Grms, 5-500 Hz
MIL-STD-810H, Method 514.8
Operating Shocks 20g / 11ms – half sine
MIL-STD-810G, Method 516.7
EMC Directive 2014/35/UE-LVD | Directive 2014/30/UE-EMC | Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006 | MIL-STD-461G (on request)
