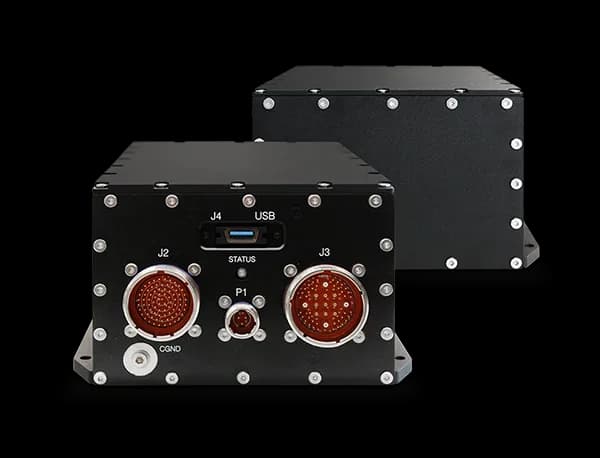

The MAG2A EVO is a high-performance Mission Computer with 3G-SDI graphics & video capture capabilities, designed for GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding applications.
At the heart of the unit there is a Quad Core Intel® Xeon® E3-1505M v6 processor, with a 16GB DDR4 and a 64GB Flash memory. The MAG2A EVO is powered by a Nvidia Pascal Quadro P2000 dedicated video processor with a 4GB GDDR5 memory, and a rich video selection of I/O including 2x 3G-SDI outputs, 2x 3G-SDI inputs, 2x VGA independent outputs, RGB sync-on-green input. One VGA output channel from the graphics processor is also buffered to drive two identical sets of video signals. Additionally, a DVI-D single link is brought out to the front panel from the processor for maintenance activities. The graphics processor board is connected to the SBC via PCI Express™. The connection allows the video inputs to be transferred into the system memory for manipulation and/or to be recorded into the local Solid State Disk. The MAG2A EVO Mission Computer also includes a large number of I/O such as 3x Gigabit Ethernet ports, 4x USB 2.0 ports, 1x USB 3.0 port, 4x serial COM (RS232/RS422/RS485), stereo audio line out and audio in. The MAG2A EVO can host an internal 2.5” Serial-ATA III SSD with the capability of triggering a hardware Secure Erase signal.
MAG series Mission Computer employ conduction cooled cards inside a sealed chassis, using baseplate cooling for heat dissipation. The MAG2A EVO is qualified according to MIL-STD-810/MIL-STD-461 specifications and RTCA/DO-160G.

System Features

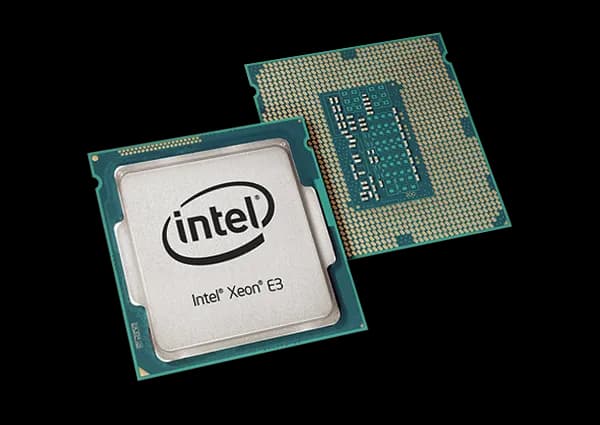

Processor Module Quad Core Intel® Xeon® E3-1505M v6 (4C @ 3.0 GHz)
Video Processing Module Based on Nvidia Pascal Quadro P2000 GP107 GPU with 768 CUDA cores
Integrate 4GB GDDR5 graphics memory with 128-bit memory width and 96GB/s memory bandwidth
Video Ports 2x 3G-SDI inputs & 2x 3G-SDI outputs
1x RGB input
2x VGA (1920×1200) independent outputs
1x VGA split output (replica of a VGA channel)
1x service DVI output (from CPU board)
I/O Ports 3x Gigabit LAN (copper)
4x USB 2.0 ports
1x USB 3.0 port
4x serial ports (RS232/RS422/RS485)
Audio stereo input/output
2x isolated discrete IN + 2x isolated discrete OUT
Internal Storage Devices 64GB SATA III On-Board SSD Chip
Internal 2.5” SATA SSD w/ Secure ERASE option (hardware trigger)
Management Features Power BIT, continuous BIT
Internal temperature monitoring
Internal voltage monitoring
Software Windows 10, Linux
Power Input +28Vdc standard (+20V to +36V)
Extreme operating range: +16V to +50V
Compiant to RTCA/DO-160G S16 CAT. Z and MIL-STD-704F
Power Consumption Power consumption (average) 110W
Power peak up to 150W
Voltage Spike 600V (RTCA/DO-160G S17 CAT. A)

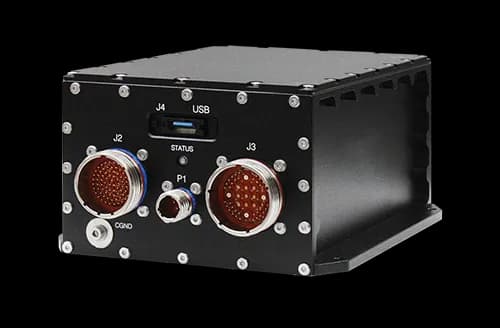

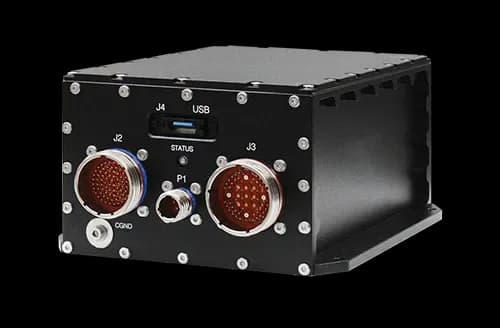

Mechanical Features

(W x D x H)
167.0 mm x 219.0 mm x 97.0 mm
Weight 4 Kg
Cooling Fanless design, conduction cooling through baseplate
Interfaces 3x MIL-DTL-38999 military circular connectors
1x USB 3.0 connector

(W x D x H)
167.0 mm x 219.0 mm x 97.0 mm
Weight 4 Kg
Cooling Fanless design, conduction cooling through baseplate
Interfaces 3x MIL-DTL-38999 military circular connectors
1x USB 3.0 connector

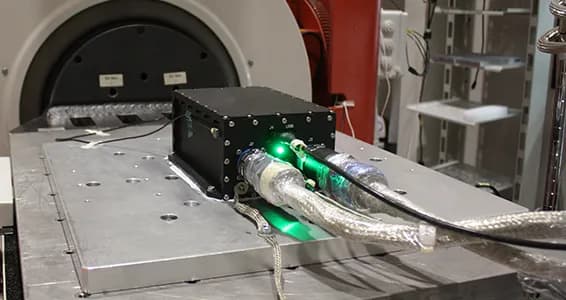

Environmental Features

Operating Temperature -45°C to +70°C” (RTCA/DO-160G S4 CAT. B2)
Storage Temperature -50°C to +85°C” (RTCA/DO-160G S4 CAT. B2)
Altitude Operative: Max 25.000 feet (RTCA/DO-160G S4 CAT. B2)
Humidiity Up to 95% (RTCA/DO-160G S6 CAT. B)
Shock 6g shock, 11ms (RTCA/DO-160G S7 CAT. B)
Crash Safety 20g shock, 11ms (RTCA/DO-160G S7 CAT. B)
Vibrations Random, up to 4.76 Grms
Frequency Range: 5 ÷ 300Hz (RTCA/DO-160G S8 CAT. U)
Environmental Protection IP65 rated according to EN 60529
Fungus Protection According to RTCA/DO-160G S13 CAT. F
Salt Spray 5% 35°C 48 hours (RTCA/DO-160G S14 CAT. S)
Magnetic Effect Deviation at 0.3m (RTCA/DO-160G S15 CAT. Z)
EMC Audio frequency susceptibility: RTCA/DO-160G S18 CAT. Z
Induced signal susceptibility: RTCA/DO-160G S19 CAT. ZC
Radio frequency susceptibility: RTCA/DO-160G S20 CAT. T
Emission of radio frequency energy: RTCA/DO-160G S21CAT. M
Electrostatic discharge: RTCA/DO-160G S25 CAT. A
