The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, where they offer superior robustness and highperformance computing technology.

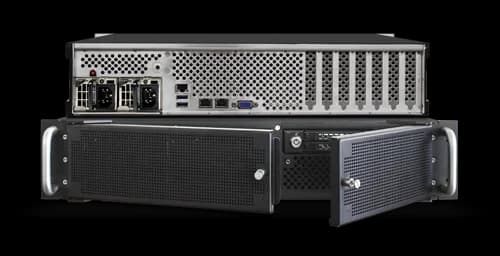

The XRS 2U S7 Series features a powerful single or dual socket 3rd Gen Intel® Xeon® Scalable Processor Platform, suitable for the most intense workloads and supporting a generous number of PCIe 4.0 lanes available as PCIe, M.2, and NVMe slots. The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events. These servers have a 2U milled aluminium chassis designed for superior resistance and torsional strength, ideal for the physical demands of Edge computing. The XRS 2U S7 Series offers a depth of 450 mm with standard I/O connectors and 475 mm when equipped with round MIL-grade connectors for enhanced durability in the I/O ports and power input. They can host up to four low-profile PCIe boards, including GPUs, FPGA modules, and other powerful PCI Express boards. The front panel includes air filters and features two horizontal doors with thumbscrews to protect access to removable drives, USB connectors, and the power button, with an optional key lock for additional security. The XRS 2U S7 Series also includes three 3.5” drive bays that can accommodate up to nine removable SSDs.
Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461 for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.
| CPU | 3rd Gen Intel® Xeon® Scalable Processors, Dual Socket LGA-4189 supported, max 270W TDP |
| Memory | Up to 2TB RDIMM, DDR4-3200MHz; in 8 DIMM slots |
| Chipset | Intel® C621A |
| Network Connectivity | 2x RJ45 10 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
| Serial | 1x COM Port (1 header) |
| USB | 5x USB 3.2 ports (2 via header + 2 rear + 1 type A) |
| Storage | On board: 2x M.2 PCIe 4.0×4; M.2 Form Factor: 2280/22110, 2280; M-Key 2x SATA DOM Removable: 3x 2.5″ SAS SSD or 6x U.2 NVMe SATA SSD or 9x 2.5″ SATA SSD |
| TPM | TPM Header |
| I/O connectors | 2 x 10GbE, 1 x IPMI, 2 x USB 3.2, VGA |
| Expansion slots | 4x PCIe 4.0×16 low profile |
| Operative Systems | Windows® 11 IoT Enterprise, Windows® 10 IoT Enterprise LTSC; Windows® Server 2022; Windows® Server 2019; Windows® Server 2016; RHEL 8.2 64bit; Ubuntu 20.04.2 LTS SVR 64bit; CentOS 7.9 64bit; |
| IPMI | IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications |
| Remote Monitoring | Monitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health) |
| Power Input | AC or DC input, redundant PSU Optional EMC Filter and MIL D38999 connector with single power supplies Standard rear I/O and MIL grade power input stay in 450mm depth |
| Dimensions (W x D x H) |
Width 483mm Depth 450mm – standard I/O ports and industrial / MIL grade power input Depth 475mm – MIL grade connectors Height 88mm – 2U rack |
| Material | Milled Aluminum chassis with surface passivation treatment; AISI316L Stainless steel rear panel |
| Weight | <= 15 Kg (depending on configuration) |
| Colour | Black / RAL 9005 – Powder Coating |
| Mounting | 2U 19” rackmount chassis with bridge handles |

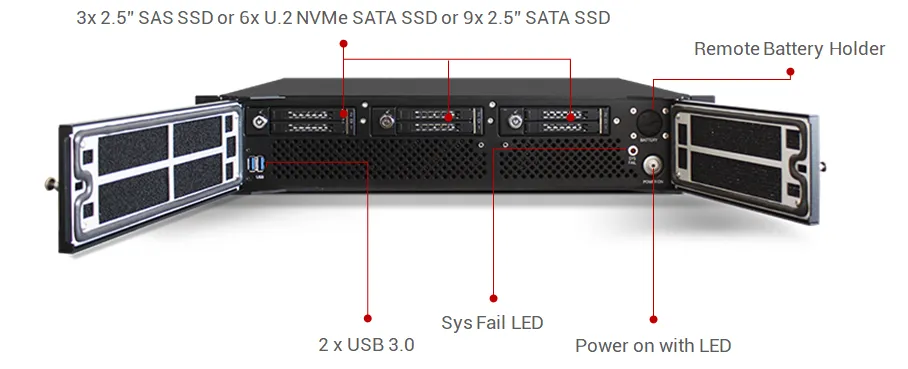

| Front Panel | IP30 double-door front panel with air filters. Optional door-less front panel Power ON with led; 2 x USB 3.0; Remote Battery Holder |

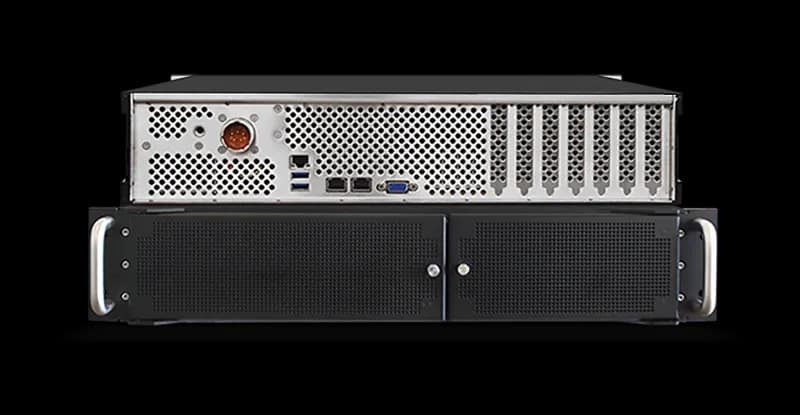

| Rear Panel | Standard I/O connectors / Optional D38999 MIL type connectors on I/O and Power Input |
| Dimensions (W x D x H) |
Width 483mm Depth 450mm – standard I/O ports and industrial / MIL grade power input Depth 475mm – MIL grade connectors Height 88mm – 2U rack |
| Material | Milled Aluminum chassis with surface passivation treatment; AISI316L Stainless steel rear panel |
| Weight | <= 15 Kg (depending on configuration) |
| Colour | Black / RAL 9005 – Powder Coating |
| Mounting | 2U 19” rackmount chassis with bridge handles |
| Front Panel | IP30 double-door front panel with air filters. Optional door-less front panel Power ON with led; 2 x USB 3.0; Remote Battery Holder |
| Rear Panel | Standard I/O connectors / Optional D38999 MIL type connectors on I/O and Power Input |
| Operating Temperature | Standard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6) Extended: -20°C to +60°C (depending on configuration) |
| Storage Temperature | -40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6) |
| Humidiity | 5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II) |
| Fungus | Conformal coating on request |

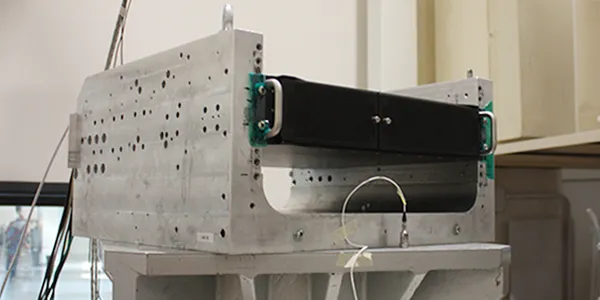

| Shock | 40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I) |
| Vibrations | Functional : MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle) Transportation MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure) |
| EMC/Electromagnetic Compatibility | According to MIL-STD-461G with EMI Filter and MIL type connectors on power input |
