XRS 2U S8 SOLO SeriesExtreme Rugged Edge Servers
5th/4th Gen Intel® Xeon® Scalable Processors
Overview
The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, where they offer superior robustness and high-performance computing technology.
The XRS 2U S8 SOLO offers rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. It is an ideal solution for cost-sensitive, power-constrained, and moderate workload environments, providing robust computing for demanding Edge applications without the complexity and overhead of dual processors.
The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events. This series features a 2U milled aluminium chassis providing unmatched resistance and torsional strength essential for Edge computing sites, which often face extreme operational demands.
It offers configurations with depths of 400mm or 475mm for standard or round MIL-grade I/O connectors, respectively, catering to the specific needs of Edge infrastructure.
Capable of accommodating up to five full-length low profile PCIe boards and designed for high-density storage with the capacity for up to six removable SSDs, the XRS 2U S8 SOLO Series is robust and versatile. It also includes air filters and protective double-door front panel with optional door-less variants, ensuring secure and reliable operation.
Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.

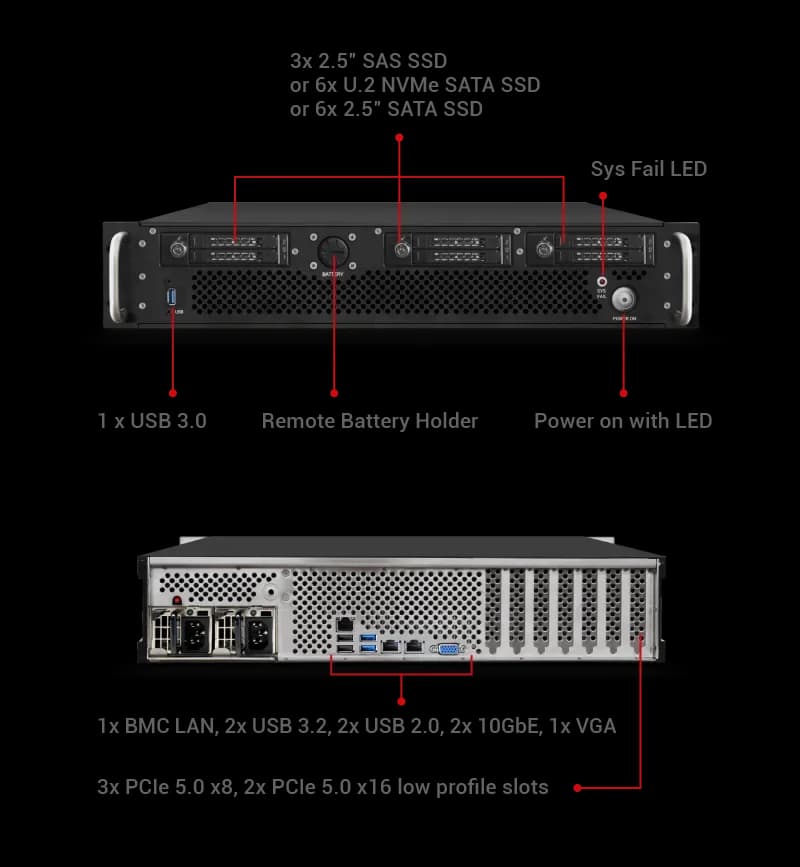

System Features

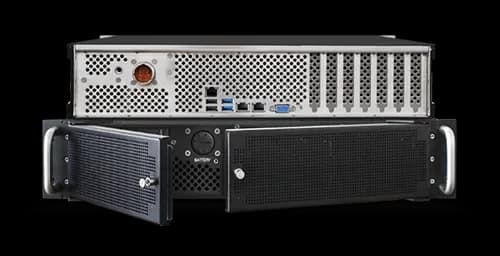

Mechanical Features

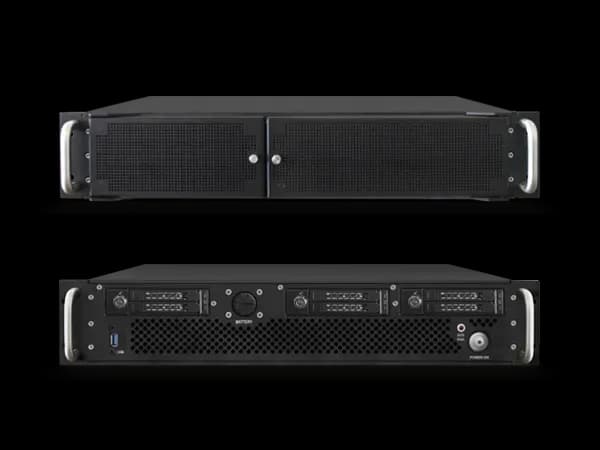

Front Panel
Optional door-less front panel.
Power ON with led; 1 x USB 3.0; Remote Battery Holder.

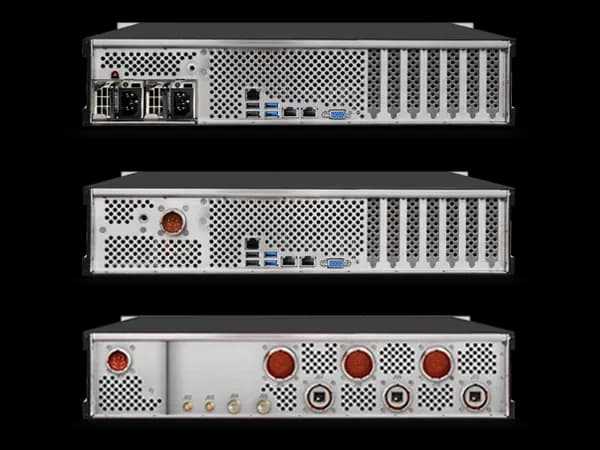

Rear Panel
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input and I/O.
Environmental Features
