MAG2C EVO G2Next-Gen 3G-SDI Video & Graphics Mission Computer
Latest generation air-cooled VPX mission computer with NVIDIA Ampere GPU and 3G-SDI video capture.
Overview
The MAG2C EVO G2 is the latest evolution of the MAG2C Mission Computer, featuring the powerful 13th Generation Intel® Core™ i7 Raptor Lake processor working alongside an NVIDIA RTX A2000 GPU. Designed for critical environments, MAG is a family of rugged OpenVPX-based Mission Computers that deliver high performance for mission-critical applications.
The MAG2C EVO G2 is optimized for GPGPU computing, AI processing, deep learning, and H.265/H.264 encoding & decoding applications. Its forced air cooling ensures efficient heat dissipation, enabling optimal computing performance across diverse environments.

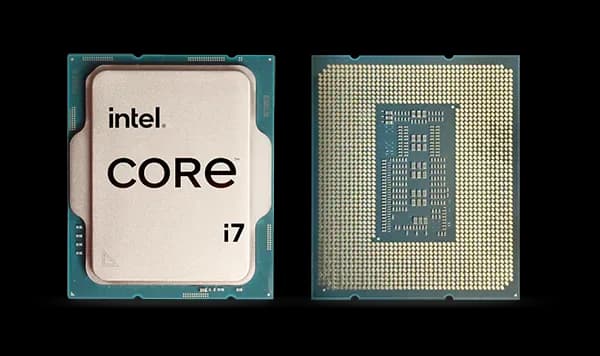

At its core, the MAG2C EVO G2 is powered by the 13th Generation Intel® Core™ i7 Raptor Lake processor, 64GB DDR5 ECC memory and a 480GB soldered NVMe SSD, ensuring exceptional computational performance and efficiency.
The system runs on a dedicated NVIDIA RTX A2000 GPU, based on the Ampere architecture, featuring 2560 CUDA Cores, 80 Tensor Cores for AI acceleration, and 20 RT Cores for real-time ray tracing. The GPU is designed for high-efficiency parallel processing and supports hardware-accelerated H.265/H.264 encoding and decoding, enabling real-time video processing and AI-enhanced applications.
The system offers an extensive video I/O selection, including two 3G-SDI outputs, two 3G-SDI inputs, two independent VGA outputs, and an optional RGB sync-on-green input. A VGA output channel is buffered to support two identical video signal sets, while a DVI-D single link connection on the front panel facilitates maintenance operations. The graphics processor board connects to the SBC via PCI Express™, ensuring seamless video input transfer into system memory for processing or local Solid State Disk recording.
Beyond graphics, the MAG2C EVO G2 extends its functionality with a comprehensive set of I/O options, including three Gigabit Ethernet ports, four USB 2.0 ports, one USB 3.0 port, and four serial COM ports supporting RS232, RS422, and RS485. It also features stereo audio line-in and line-out, providing additional flexibility for integration into various mission systems.
The system supports an internal 2.5” Serial-ATA III SSD with hardware Secure Erase or Destroy capability, depending on the selected configuration. Designed for both aircraft and ground vehicles, it operates on a 28 VDC power input and includes a 50 ms power hold-up capability for enhanced reliability in demanding environments.
The MAG2C EVO G2 Mission Computer is compliant to MIL-STD-810/MIL-STD-461 and qualified according to RTCA/DO-160G standard, ensuring robust performance in the most extreme conditions.
System Features

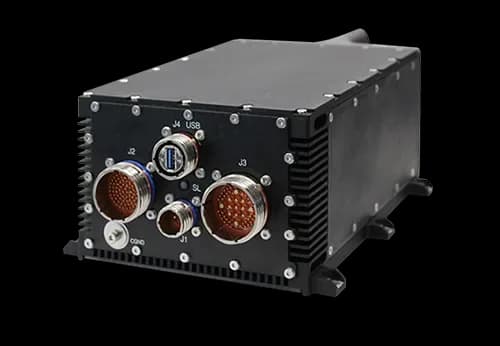

Mechanical Features

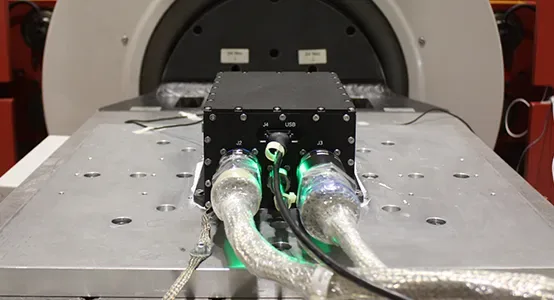

Environmental Features
