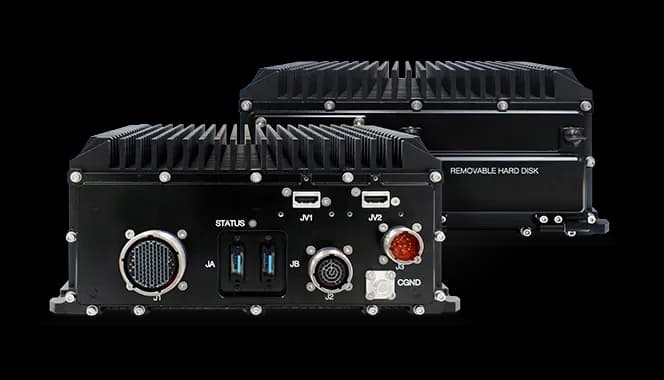

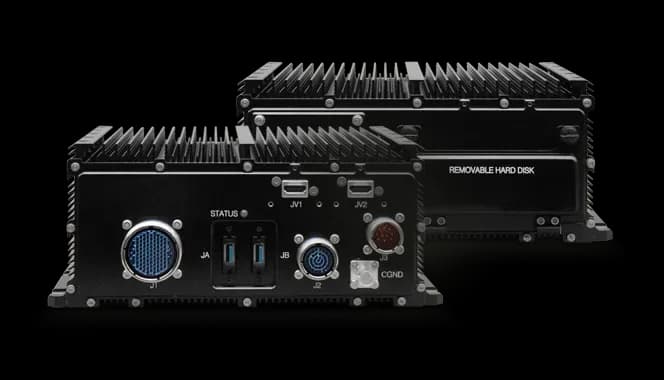

AWS EVO-SDIAdvanced Mission Computer with Dual Removable Disk and HD-SDI Input
Advanced mission computer with HD-SDI video input, dual removable SSDs, and fanless MIL-grade design.
Overview
The AWS EVO-SDI is a high-performance rugged Mission Computer designed for heavy edge workloads and real-time video processing applications. Featuring an HD-SDI video input alongside HDMI and VGA outputs, the AWS EVO-SDI is SWaP-C optimized with a fanless design that requires no external airflow.

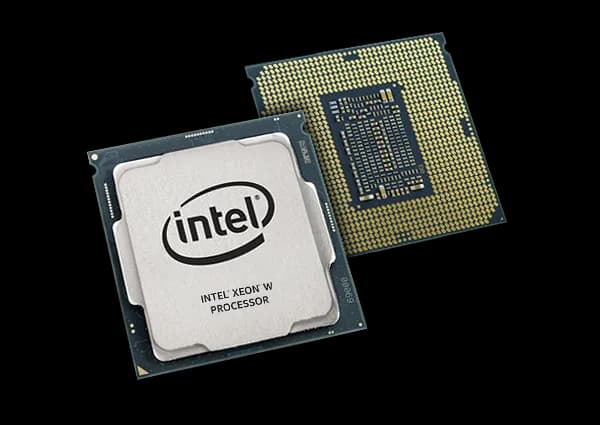

The AWS EVO-SDI features a high-end eight-Core 11th Gen Intel® Xeon® W Processor (Tiger Lake) with 32GB DDR4 dualchannel memory to provide excellent overall performance. Its video interfaces include 1x HDMI output, 1x HD-SDI input, and 1x VGA output, enabling seamless integration with highresolution sensors and situational awareness systems.
The system provides robust connectivity, including 4x Gigabit Ethernet ports, 2x USB 3.0, 4x USB 2.0, PS/2, 4x COM ports, and 2x SATA 6 Gb/s ports with RAID support. For storage, the AWS EVO-SDI offers a Type II CFlash slot accessible from the front panel, and two front-ounted hot-swappable SATA bays supporting 2.5″ SSDs with Secure Erase.
The AWS EVO-SDI is design to meet MIL-STD-810G and RTCA/DO-160G, ensuring reliable operation in harsh environments.
System Features

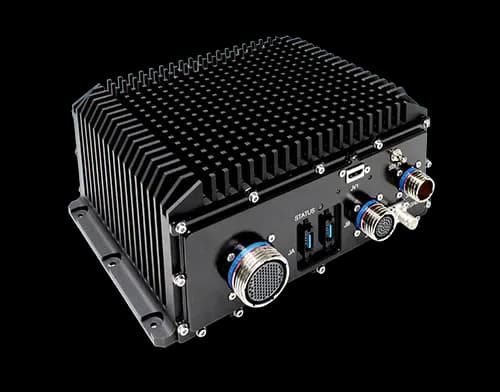

Mechanical Features

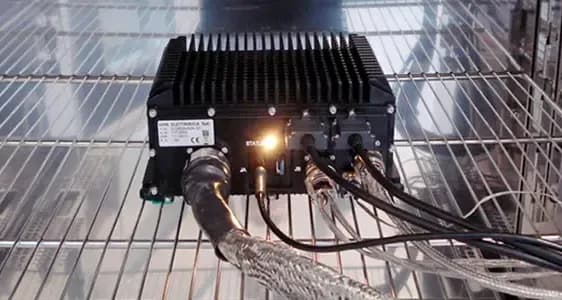

Environmental Features
The other configurations of AWS
Same platform, same spec sheet: form factor, socket and I/O are what change. Tick two and read them side by side.
Insights & Engineering Guides
Qualification Guide10 min read

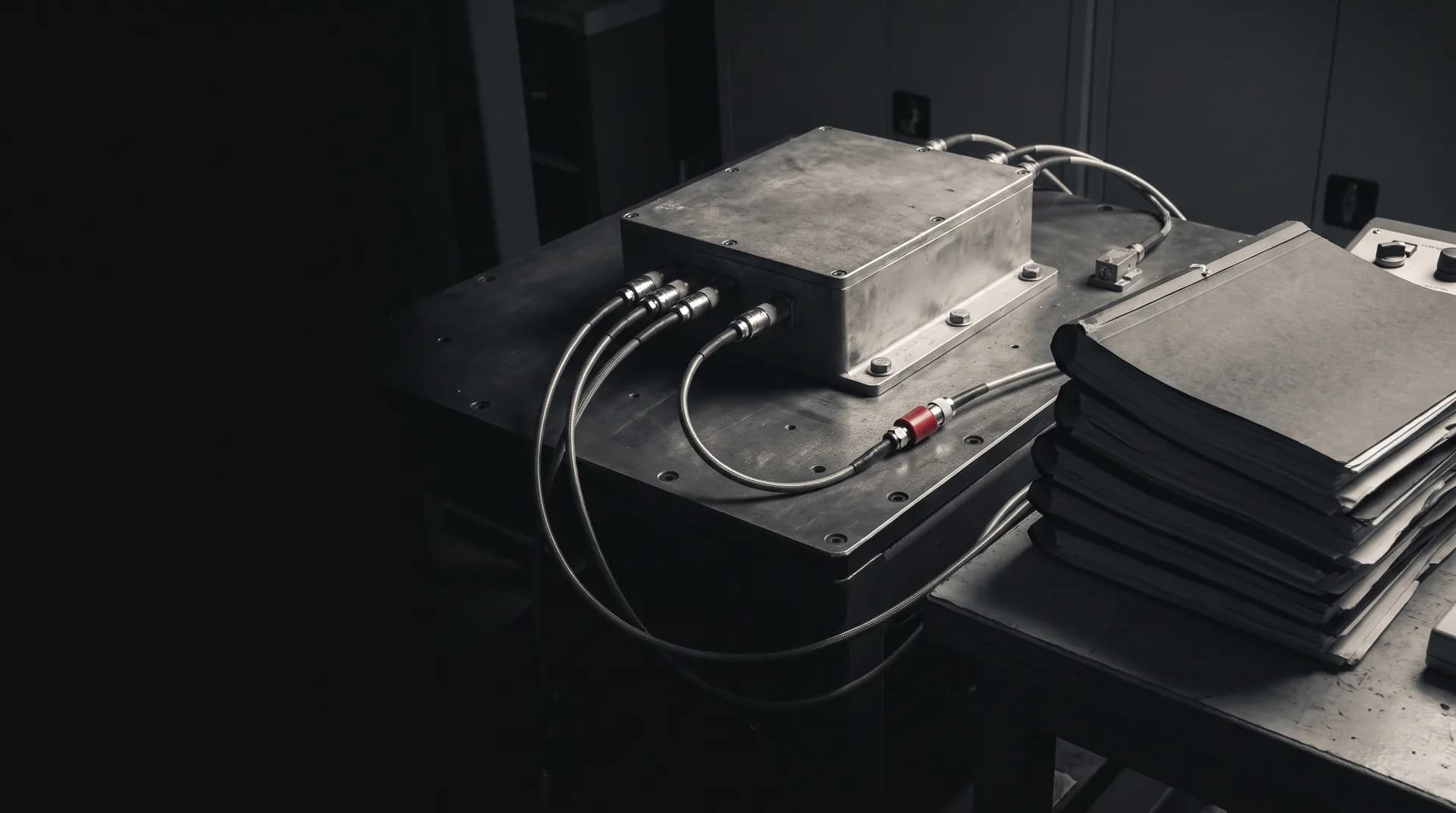

From Prototype to Qualification: The MIL-STD Programme Timeline
