AWS EVOAdvanced Mission Computer with Dual Removable Disk
High-performance fanless mission computer with dual removable SSDs and MIL-grade connectors.
Overview

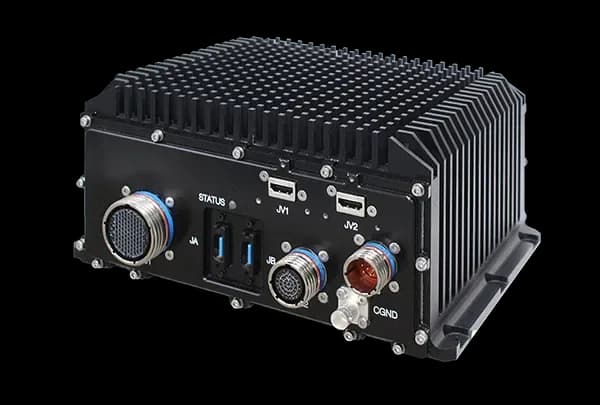

The AWS EVO is a high performance rugged Mission Computer built for heavy edge workloads and multi-media applications. Featuring multiple display control and audio interfaces, the AWS EVO is SWaP-C optimized and has a fanless design with no external airflow prescriptions.

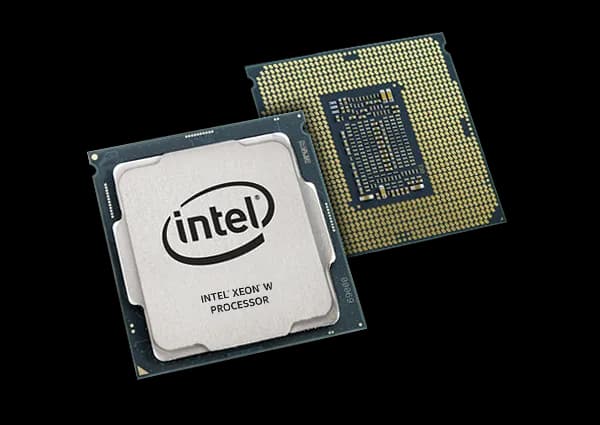

The AWS EVO features an high end eight-Core 11th Gen Intel® Xeon® W Processor (Tiger Lake) or a powerful Hexa-Core 9th Gen Intel® Xeon® E Processor (Coffee Lake Refresh) and 32GB DDR4 dual-channel memory to provide an excellent overall performance.
Video outputs include three independent ports (2x HDMI + 1x VGA) while input/output ports offer Audio, 4x Gigabit Ethernet ports, 2x USB 3.0 ports and 4x USB 2.0 ports, PS/2, 4x COM ports and 2x SATA 6 Gb/s ports with RAID support.
The AWS EVO comes with several storage options: an internal mSATA module, a Type II CFlash slot accessible from the front panel and two front-mounted hot-swappable SATA ports suitable for the installation of two 2.5″ SSDs with Secure Erase option. An internal MiniPCI Express slot is available for further expansion in alternative to the mSATA option. The AWS EVO is compliant to MIL-STD-810G certifications and to RTCA/DO-160G.
System Features
Mechanical Features
Environmental Features
The other configurations of AWS
Same platform, same spec sheet: form factor, socket and I/O are what change. Tick two and read them side by side.
