Overview

GAP is a product family of Rugged aluminium Servers and Workstations designed for Edge applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments.
The GAP S8 Series Rugged Edge Servers are powered by single and dual socket 5th / 4th Gen Intel® Xeon® Scalable Processors, renowned for their robust architecture with enhanced AI acceleration and advanced security capabilities. Offering improved performance and efficiency, these servers are tailored to meet the demanding requirements of modern computing environments at the Edge. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events.
Built to meet MIL-STD-810F standards for temperature and shock resistance, as well as MIL-STD-167-1A standards for vibration tolerance, GAP Rugged Edge Servers ensure reliable operation under the challenging conditions often found at the Edge. Additionally, they can optionally be configured to comply with MIL-STD-461 standards for EMI/EMC, featuring MIL-grade connectors for either the power input or both the I/O connectors and power supply inputs.
DOWNLOAD DATASHEET
System Features

CPU 5th Gen Intel® Xeon®/ 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 205W TDP
Memory Up to 2TB ECC RDIMM, DDR5-4800MT/s in 8 DIMM slots
Chipset Intel® C741
Graphics 1 Aspeed AST2600 BMC port
Network Connectivity 1x Dedicated IPMI LAN port
2x 10GbE with RJ45 connectors
Storage On Board:
1x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module
Removable:
Up to 3x 2.5” SAS SSD or
Up to 6x U.2 NVMe SSD or
Up to 9x 2.5” SATA SSD
TPM 1x TPM Header
Motherboard I/O shield 1x VGA, 2x USB 3.2, 2x USB 2.0, 2x 10GbE, 1x IPMI, 1x COM (available on the rear panel)
Expansion slots 2x PCIe 5.0 x16 slot FHFL
1x PCIe 5.0 x16 slot low profile
Operative Systems Windows® 11 IoT Enterprise, Windows® 10 IoT Enterprise LTSC, Windows® Server 2022, Windows® Server 2019, Linux
IPMI IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote Monitoring Monitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, RAID health, and memory health)
Power Supply AC or DC Redundant Power Supply – Optional AC Single
Mechanical Features

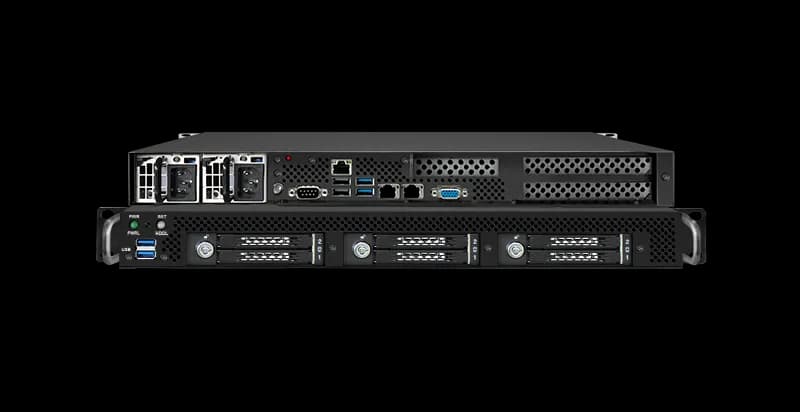

Dimensions (W x H x D) 483 x 44 x 510 mm
540 mm full depth
Material Aluminum with surface passivation treatment
Colour Black / RAL 9005 – Powder Coating
Mounting 1U 19” rackmount chassis
Optional Telescopic slides
Configuration Rear I/O – Rear Power Supply
Front Panel Leds / Buttons Power On/Off button with LED
Reset button with LED
2x USB 3.0
Fans 6x internal PWM fans

Dimensions (W x H x D) 483 x 44 x 510 mm
540 mm full depth
Material Aluminum with surface passivation treatment
Colour Black / RAL 9005 – Powder Coating
Mounting 1U 19” rackmount chassis
Optional Telescopic slides
Configuration Rear I/O – Rear Power Supply
Front Panel Leds / Buttons Power On/Off button with LED
Reset button with LED
2x USB 3.0
Fans 6x internal PWM fans
Environmental Features

Operating Temperatures 0°C to +50°C
MIL-STD-810H, Method 501.7 & 502.7
-20°C to +60°C (depending on configuration)
Storage Temperature -40°C to +70°C
MIL-STD-810H, Method 501.7 & 502.7
Humidity 5% – 95% non-condensing
MIL-STD-810H 507.6
Operating Vibrations MIL-STD-167-1A, Type I
Not Operating Vibrations 1.17 Grms, 5-500 Hz
MIL-STD-810H, Method 514.8
Operating Shocks 20g / 11ms – half sine
MIL-STD-810G, Method 516.7
EMC Directive 2014/35/UE-LVD | Directive 2014/30/UE-EMC |
Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006 | MIL-STD-461G (on request)
