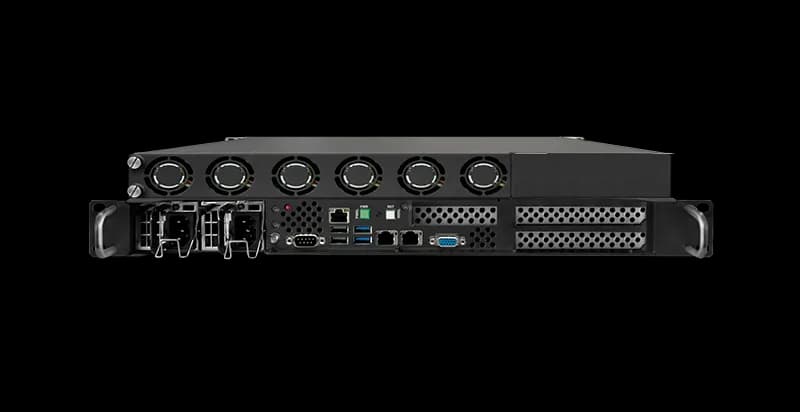

GAP-151P-S7-SOLO Series
1U Rugged Server
3rd Gen Intel® Xeon® Scalable Processors
SingleSocket
510mmDepth
FrontI/O
FrontPSU
Overview
GAP is a family of rugged servers and workstations with an aluminum construction, designed for applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments.
GAP-151P-S7-SOLO rugged servers feature single socket 3rd Gen. Intel® Xeon® Scalable Processors (Ice Lake), a balanced architecture that delivers built-in AI acceleration and advanced security capabilities, up to 2TB DDR4-3200 RAM and 64 lane PCIe Gen 4.
GAP S7 SOLO series rugged servers are MIL-STD-810F qualified for temperature and shock, MIL-STD-167-1A for vibrations and can optionally conform to MIL-STD-461 for EMI/EMC.
System Features

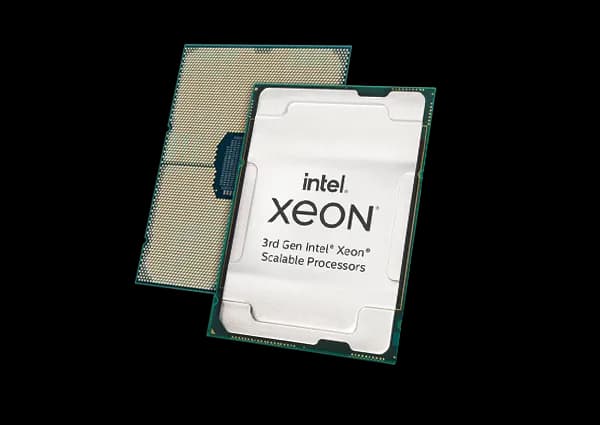

CPU3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) max 205W TDP
MemoryUp to 2TB ECC RDIMM, DDR4-3200MHz; 8 DIMM slots
ChipsetIntel® C621A
GraphicsASPEED AST2600 BMC
Network Connectivity1x Dedicated IPMI LAN port
2x 10 GbE ports
2x 10 GbE ports
StorageInternal:
1x M.2 NVMe; M-Key, 2280/22110
2x Disk on Module
Up to 1x U.2 NVMe or 2.5” SATA / SAS SSD
1x M.2 NVMe; M-Key, 2280/22110
2x Disk on Module
Up to 1x U.2 NVMe or 2.5” SATA / SAS SSD
TPM1 TPM Header
Motherboard I/O shieldAvailable on the front: 1x COM; 1x IPMI LAN; 2x USB 2.0; 2x USB 3.2; 2x GbE; 1x VGA
Expansion slots2x PCI-E 4.0 x16 slot FHFL
1x PCI-E 4.0 x16 slot (Low profile)
1x PCI-E 4.0 x16 slot (Low profile)
Operative SystemsWindows® 10 IoT Enterprise 64bit, Windows® Server 2016 64bit; Windows® Server 2019 64bit; RHEL 8.4 64bit;
Ubuntu 20.04.2 LTS SVR 64bit; CentOS 7.9 64bit
Ubuntu 20.04.2 LTS SVR 64bit; CentOS 7.9 64bit
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health)
Power SupplyAC Redundant Power Supply – Optional Single
DC Redundant Power Supply – Optional Single
DC Redundant Power Supply – Optional Single

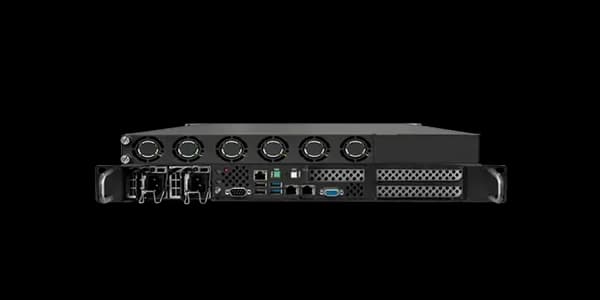

Mechanical Features
Dimensions
(W x H x D)483 x 44 x 510 mm
(W x H x D)483 x 44 x 510 mm
MaterialAluminum with surface passivation treatment
ColourBlack / RAL 9005 – Powder Coating
Mounting1U 19” rackmount chassis
Optional Telescopic slides
Optional Telescopic slides
ConfigurationFront I/O – Front Power Supply
Front Panel Leds / ButtonsPower On/Off button with LED
Reset button with LED
Reset button with LED
Drive Bays1x 2.5” internal
Fans6x removable PWM fans

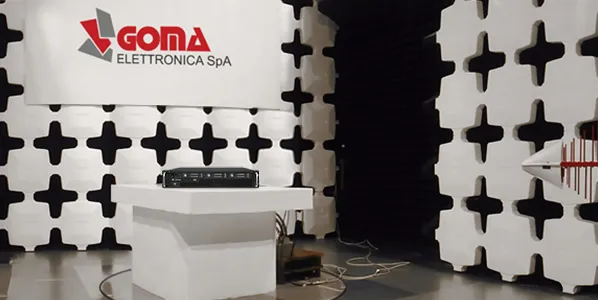

Environmental Features
Operating Temperatures0°C to +50°C
MIL-STD-810H, Method 501.7 & 502.7
-20°C to +60°C (depending on configuration)
MIL-STD-810H, Method 501.7 & 502.7
-20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +70°C
MIL-STD-810H, Method 501.7 & 502.7
MIL-STD-810H, Method 501.7 & 502.7
Humidity5% – 95% non-condensing
MIL-STD-810H 507.6
MIL-STD-810H 507.6
Operating VibrationsMIL-STD-167-1A, Type I
Not Operating Vibrations1.17 Grms, 5-500 Hz
MIL-STD-810H, Method 514.8
MIL-STD-810H, Method 514.8
Operating Shocks20g / 11ms – half sine
MIL-STD-810G, Method 516.7
MIL-STD-810G, Method 516.7
EMCDirective 2014/35/UE-LVD | Directive 2014/30/UE-EMC | Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006 | MIL-STD-461G (on request)
Regulation EC No 1907/2006 | MIL-STD-461G (on request)
