Overview

The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, where they offer superior robustness and high-performance computing technology.

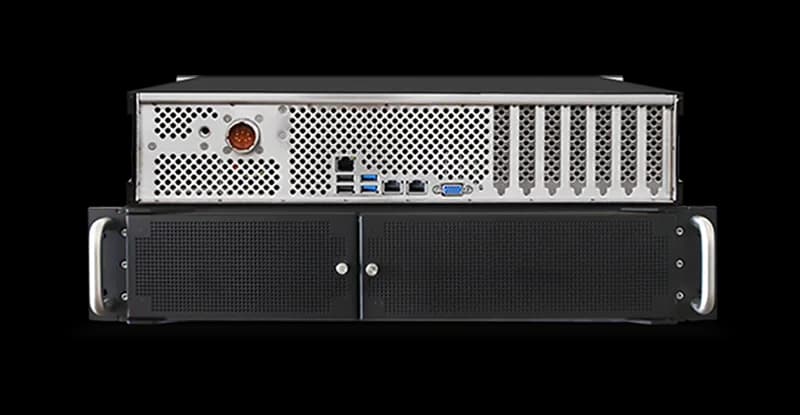

The XRS 2U S8 SOLO offers rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. It is an ideal solution for cost-sensitive, power-constrained, and moderate workload environments, providing robust computing for demanding Edge applications without the complexity and overhead of dual processors. The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events. This series features a 2U milled aluminium chassis providing unmatched resistance and torsional strength essential for Edge computing sites, which often face extreme operational demands. It offers configurations with depths of 400mm or 475mm for standard or round MIL-grade I/O connectors, respectively, catering to the specific needs of Edge infrastructure. Capable of accommodating up to five full-length low profile PCIe boards and designed for high-density storage with the capacity for up to six removable SSDs, the XRS 2U S8 SOLO Series is robust and versatile. It also includes air filters and protective double-door front panel with optional door-less variants, ensuring secure and reliable operation.
Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.

DOWNLOAD DATASHEET

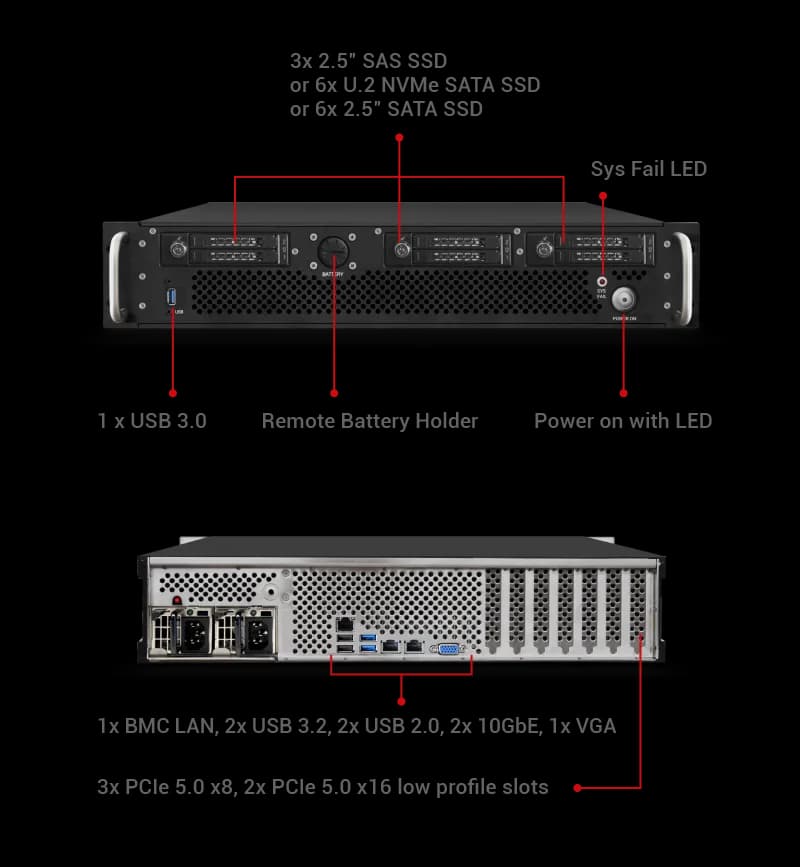

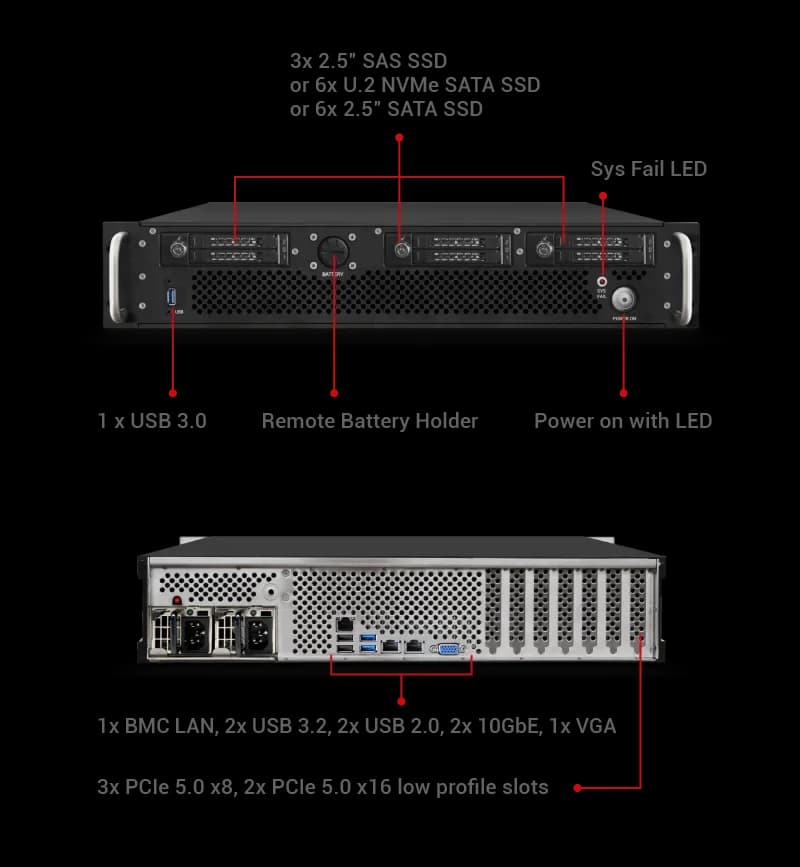

System Features

CPU 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 270W
Memory Up to 2TB ECC RDIMM, DDR5-4800MT/s in 8 DIMM slots
Chipset Intel® C741
Network Connectivity 1x Dedicated IPMI LAN port
2x 10GbE with RJ45 connectors
USB 2x USB 2.0 ports (2 rear)
4x USB 3.2 Gen1 ports (2 rear; 1 via header; 1 type A)
Storage Internal:
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module
Removable:
Up to 3x 2.5” SAS SSD or
Up to 6x U.2 NVMe SSD or
Up to 6x 2.5” SATA SSD
TPM TPM Header
I/O connectors 1x BMC LAN, 2x USB 3.2, 2x USB 2.0, 2x 10GbE, 1x VGA (available on the rear panel)
Expansion slots 3x PCIe 5.0 x8, 2x PCIe 5.0 x16 low profile slots
Operative Systems Windows® 11 IoT Enterprise, Windows® 10 IoT Enterprise LTSC, Windows Server 2022; Windows Server 2019; RHEL 8.5 64bit; Ubuntu 20.04.6 LTS 64bit; CentOS 8.5 64bit
IPMI IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote Monitoring Monitoring, control and management functions (fan speed, temperature, voltage, redundant power failure,
power consumption, disk health, raid health, and memory health)
Power Input AC or DC input, redundant PSU.
Optional EMC Filter and MIL D38999 connector with single power supplies

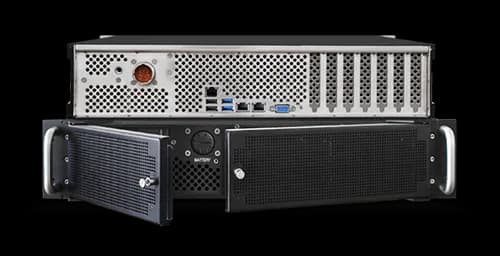

Mechanical Features

Dimensions
(W x D x H)
Width 483mm
Depth 400mm – standard I/O ports and industrial power input
Depth 475mm – standard I/O ports and MIL grade power input
Depth 475mm – MIL grade connectors on I/O ports and power input
Height 88mm – 2U rack
Material Milled Aluminum chassis with surface passivation treatment;
AISI316L Stainless steel rear panel
Weight <= 8,2 Kg (depending on cofiguration)
Colour Black / RAL 9005 – Powder Coating
Mounting 2U 19” rackmount chassis with bridge handles

Dimensions
(W x D x H)
Width 483mm
Depth 400mm – standard I/O ports and industrial power input
Depth 475mm – standard I/O ports and MIL grade power input
Depth 475mm – MIL grade connectors on I/O ports and power input
Height 88mm – 2U rack
Material Milled Aluminum chassis with surface passivation treatment;
AISI316L Stainless steel rear panel
Weight <= 8,2 Kg (depending on cofiguration)
Colour Black / RAL 9005 – Powder Coating
Mounting 2U 19” rackmount chassis with bridge handles

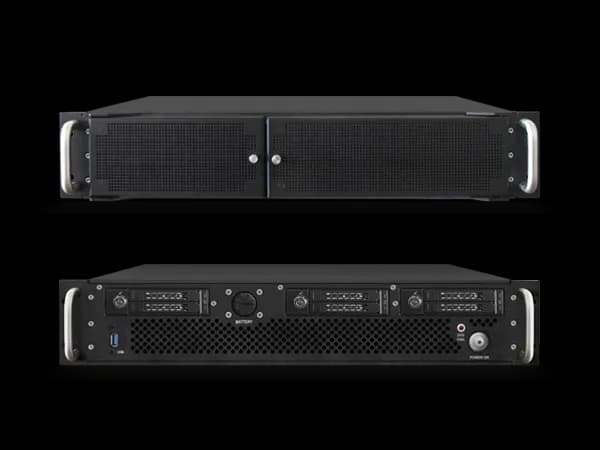

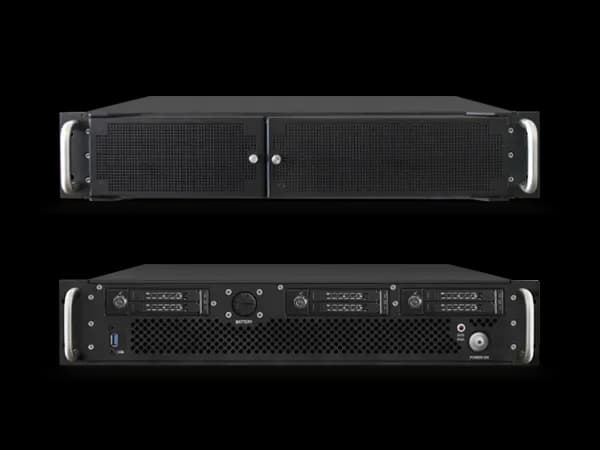

Front Side Options

Front Panel IP30 double-door front panel with air filters.
Optional door-less front panel.
Power ON with led; 1 x USB 3.0; Remote Battery Holder.

Front Panel IP30 double-door front panel with air filters.
Optional door-less front panel.
Power ON with led; 1 x USB 3.0; Remote Battery Holder.

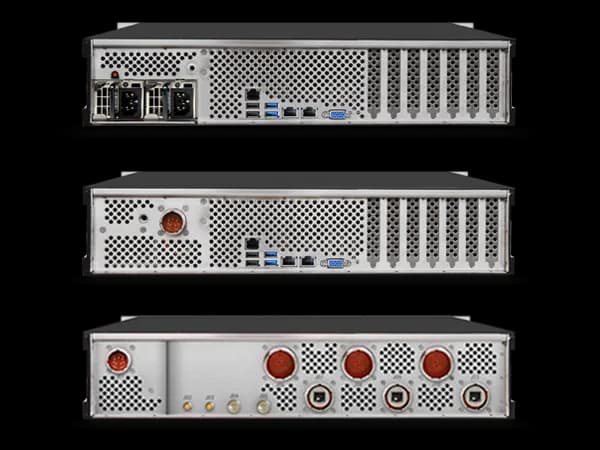

Rear Side Versions

Rear Panel Standard connectors.
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input and I/O.

Rear Panel Standard connectors.
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input and I/O.

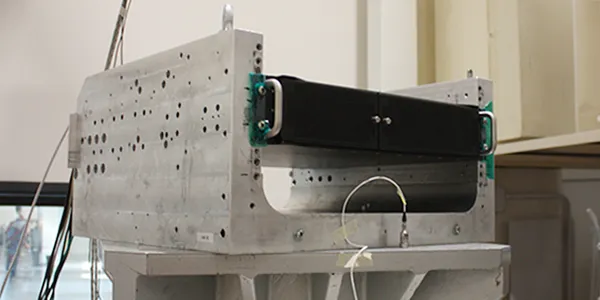

Environmental Features

Operating Temperature Standard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Extended: -20°C to +60°C (depending on configuration)
Storage Temperature -40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Humidiity 5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II)
Fungus Conformal coating on request
Shock 40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
Vibrations Functional : MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
EMC/Electromagnetic Compatibility According to MIL-STD-461G with EMI Filter and MIL type connectors on power input
