Home/Solutions/XRS/XRS 2U S8 SOLO Series

XRS 2U S8 SOLO Series

Extreme Rugged Edge Servers

5th/4th Gen Intel® Xeon® Scalable Processors

XRS2US8-SOLO_hero
810GMIL-STD Qualified
461GMIL-STD EMC
2TBDDR5 ECC Max
2URack-Mount

Overview

The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, where they offer superior robustness and high-performance computing technology.

The XRS 2U S8 SOLO offers rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. It is an ideal solution for cost-sensitive, power-constrained, and moderate workload environments, providing robust computing for demanding Edge applications without the complexity and overhead of dual processors.

The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events. This series features a 2U milled aluminium chassis providing unmatched resistance and torsional strength essential for Edge computing sites, which often face extreme operational demands.

It offers configurations with depths of 400mm or 475mm for standard or round MIL-grade I/O connectors, respectively, catering to the specific needs of Edge infrastructure.

Capable of accommodating up to five full-length low profile PCIe boards and designed for high-density storage with the capacity for up to six removable SSDs, the XRS 2U S8 SOLO Series is robust and versatile. It also includes air filters and protective double-door front panel with optional door-less variants, ensuring secure and reliable operation.

Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.

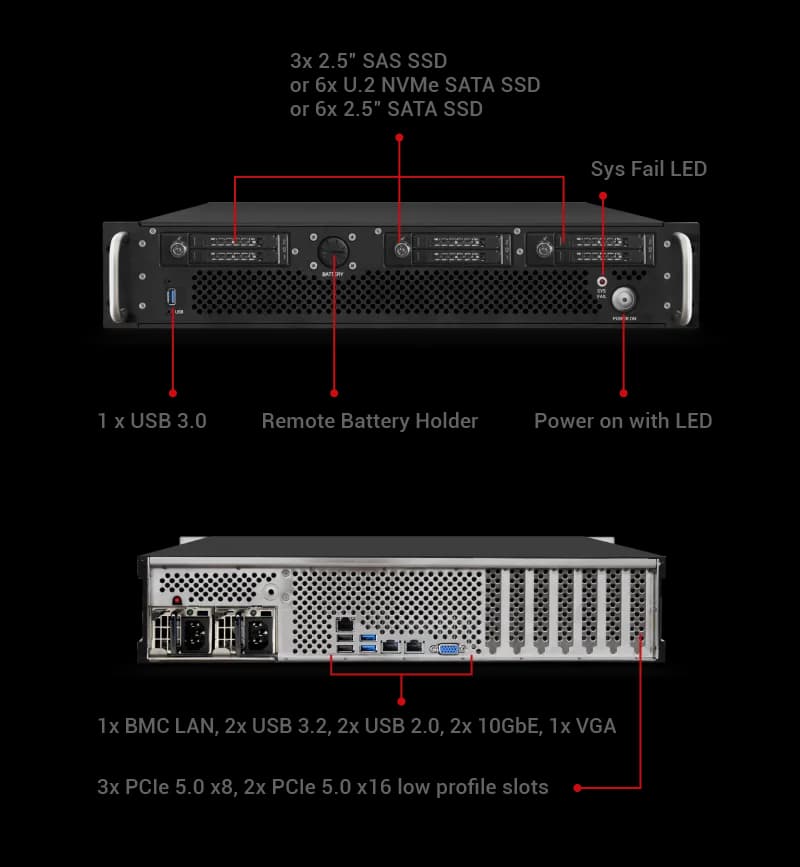

System Features

XRS2US8-SOLO_System_Features
CPU5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 270W
MemoryUp to 2TB ECC RDIMM, DDR5-4800MT/s in 8 DIMM slots
ChipsetIntel® C741
Network Connectivity1x Dedicated IPMI LAN port
2x 10GbE with RJ45 connectors
USB2x USB 2.0 ports (2 rear)
4x USB 3.2 Gen1 ports (2 rear; 1 via header; 1 type A)
StorageInternal:
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module
Removable:
Up to 3x 2.5” SAS SSD or
Up to 6x U.2 NVMe SSD or
Up to 6x 2.5” SATA SSD
TPMTPM Header
I/O connectors1x BMC LAN, 2x USB 3.2, 2x USB 2.0, 2x 10GbE, 1x VGA (available on the rear panel)
Expansion slots3x PCIe 5.0 x8, 2x PCIe 5.0 x16 low profile slots
Operative SystemsWindows® 11 IoT Enterprise, Windows® 10 IoT Enterprise LTSC, Windows Server 2022; Windows Server 2019; RHEL 8.5 64bit; Ubuntu 20.04.6 LTS 64bit; CentOS 8.5 64bit
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health)
Power InputAC or DC input, redundant PSU.
Optional EMC Filter and MIL D38999 connector with single power supplies

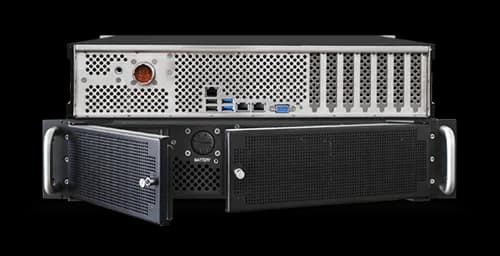

Mechanical Features

Dimensions
(W×D×H)
Width 483mm
Depth 400mm – standard I/O ports and industrial power input
Depth 475mm – standard I/O ports and MIL grade power input
Depth 475mm – MIL grade connectors on I/O ports and power input
Height 88mm – 2U rack
MaterialMilled Aluminum chassis with surface passivation treatment;
AISI316L Stainless steel rear panel
Weight<= 8,2 Kg (depending on cofiguration)
ColourBlack / RAL 9005 — Powder Coating
Mounting2U 19" rackmount chassis with bridge handles
XRS2US8-SOLO_Mechanical_Feauters

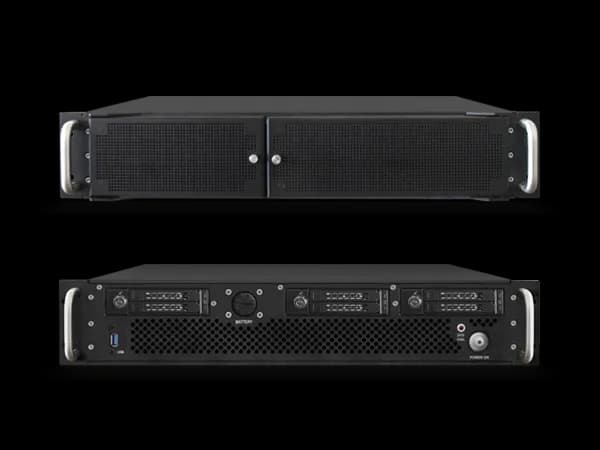

Front Panel

XRS2US8-SOLO_Front_Panel
Front PanelIP30 double-door front panel with air filters.
Optional door-less front panel.
Power ON with led; 1 x USB 3.0; Remote Battery Holder.

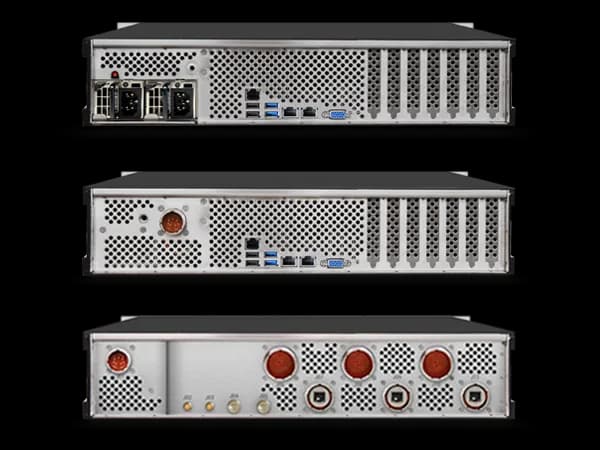

Rear Panel

Rear PanelStandard connectors.
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input and I/O.
XRS2US8-SOLO_Rear_Panel

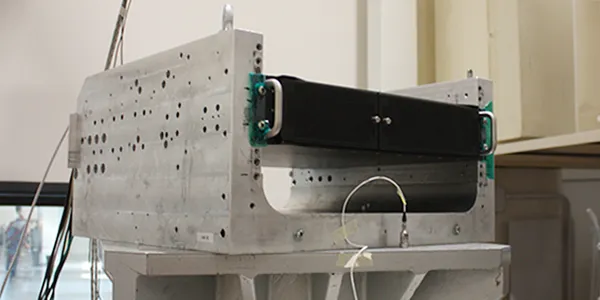

Environmental Features

XRS2US7-SOLO_Environmental
Operating TemperatureStandard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Extended: -20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Humidity5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II)
FungusConformal coating on request
Shock40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
VibrationsFunctional : MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
EMC/Electromagnetic CompatibilityAccording to MIL-STD-461G with EMI Filter and MIL type connectors on power input
