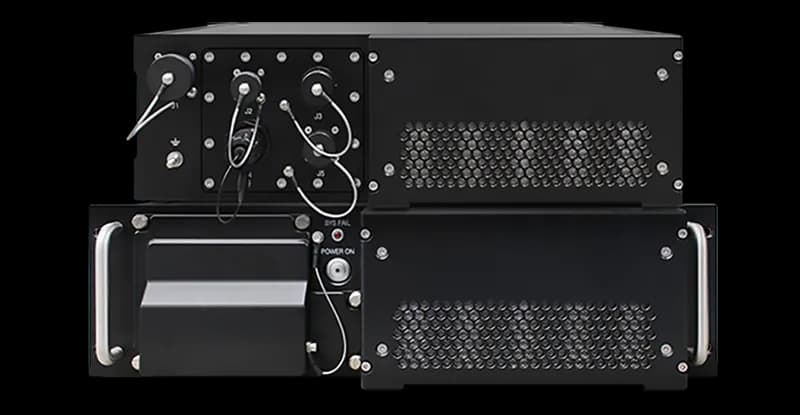

XRS 3U-IP W9 Series
Extreme Rugged Edge Workstations with IP54 protection rate
14th/13th Gen Intel® Core™ Processors
810GMIL-STD Qualified
IP54Ingress Protection
14th GenIntel Core
3URack-Mount
Overview
XRS 3U-IP W9 features a powerful computing platform based on 14th / 13th Gen Intel® Core™ i9 / i7 / i5 / i3 Processors, delivering outstanding performance, improved energy efficiency, and robust support for AI capabilities and high-speed connectivity. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events.
XRS 3U-IP W9 Extreme Rugged Workstation has an IP54 protection rate and features a 3U milled aluminium chassis designed to provide superior resistance.
The unit is equipped with MIL-grade connectors for I/O ports and for power input. XRS can host up to five full-size PCIe boards including GPU, FPGA modules, and any other high-performance PCI Express board. The front panel includes VGA, IPMI LAN, USB 3.2, and a removable battery holder. Two 3.5” drive bays can host up to six removable SSDs. Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Workstations are robustly built to meet the stringent requirements of Edge computing environments.
System Features
CPU14th/13th Gen Intel® Core i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
MemoryUp to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
ChipsetIntel® W680
Graphic1x Aspeed AST2600 BMC port
LANOn board:
1× IPMI LAN port
2× GbE LAN ports
1× IPMI LAN port
2× GbE LAN ports
USBOn board:
2x USB 2.0 ports
2x USB 3.2 Gen1 ports
2x USB 2.0 ports
2x USB 3.2 Gen1 ports
StorageInternal:
3x M.2 PCIe 4.0 x4
Form Factor: 2280; M.2 Key: M-Key (RAID 0, 1, 5)
Removable:
Up to 4x U.2 NVMe SSD or
Up to 6x 2.5” SATA SSD
3x M.2 PCIe 4.0 x4
Form Factor: 2280; M.2 Key: M-Key (RAID 0, 1, 5)
Removable:
Up to 4x U.2 NVMe SSD or
Up to 6x 2.5” SATA SSD
TPMTPM Header
I/O Expansion2x PCIe 5.0 x16 slots (16/NA or 8/8),
2x PCIe 3.0 x4
1x 5V PCI 32bit
2x PCIe 3.0 x4
1x 5V PCI 32bit
Operative SystemsWindows® 11 IoT Enterprise; Windows® 10 IoT Enterprise LTSC; Windows® Server 2022; Windows® Server 2019; RHEL 8.5 64bit; Ubuntu 20.04.6 LTS 64bit; CentOS 8.5 64bit
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health)
Power InputAC or DC input with EMC Filter and MIL D38999 connector

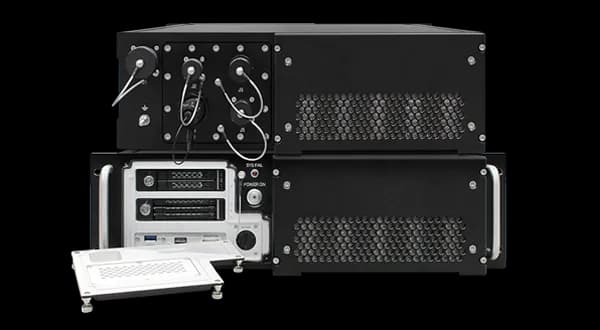

Mechanical Features
Dimensions
(W×D×H)Width 483mm
Depth 530mm including MIL grade connectors on I/O ports and power input
Height 132,5mm – 3U rack
(W×D×H)Width 483mm
Depth 530mm including MIL grade connectors on I/O ports and power input
Height 132,5mm – 3U rack
MaterialMilled Aluminum chassis with surface passivation treatment;
AISI316L Stainless steel rear panel
AISI316L Stainless steel rear panel
Weight<25 Kg (depending on configuration)
ColourBlack / RAL 9005 – Powder Coating
Mounting3U 19” rackmount chassis with bridge handles
Fan UnitFront and rear removable fan modules. Front unit with replaceable air filters
Rear Panel
Rear PanelPower input: 1× D38999 MIL-type connector
I/O ports: Removable panel with D38999 MIL-Type Connectors for I/O routing from the motherboard interfaces or from any expansion boards installed within the system. The total number of D38999 connectors varies according to the selected shell size and interface configuration.
I/O ports: Removable panel with D38999 MIL-Type Connectors for I/O routing from the motherboard interfaces or from any expansion boards installed within the system. The total number of D38999 connectors varies according to the selected shell size and interface configuration.

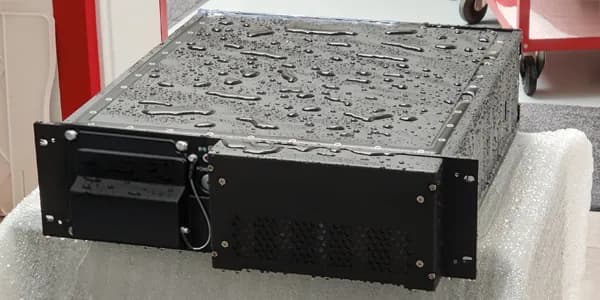

Environmental Features
Operating TemperatureStandard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Extended: -20°C to +60°C (depending on configuration)
Extended: -20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Humidity5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II)
FungusConformal coating
IP ProtectionIP54
Shock40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
VibrationsFunctional: MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
EMC/Electromagnetic CompatibilityAccording to MIL-STD-461G with EMI Filter and MIL type connectors on power input
