XRS 1U S8 SOLO Series
Extreme Rugged Edge Servers
5th/4th Gen Intel® Xeon® Scalable Processors
810GMIL-STD Qualified
461GMIL-STD EMC
2TBDDR5 ECC Max
1URack-Mount
Overview
The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, offering exceptional robustness and high-performance computing capabilities.
The XRS 1U S8 SOLO delivers Rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events.
The XRS 1U S8 SOLO features a 1U milled aluminium chassis providing unmatched resistance and torsional strength essential for Edge computing sites, which often face extreme operational demands. It is available in a 450mm depth configuration with standard I/O connectors, or in a 475mm version when equipped with MIL-grade power input, addressing the specific requirements of rugged Edge applications.
The chassis supports one full-length PCIe x16 card and up to two removable 2.5″ SSDs, with options for SAS, SATA, or U.2 NVMe drives. Internal storage includes 2x M.2 NVMe slots. The system features a double-door front panel with an optional door-less variant, front-accessible USB 3.0 ports, and a removable battery holder for enhanced serviceability.
Qualified to MIL-STD-810G for temperature, shock, and vibration, and compliant with MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are built to meet the most stringent requirements of Edge computing environments.

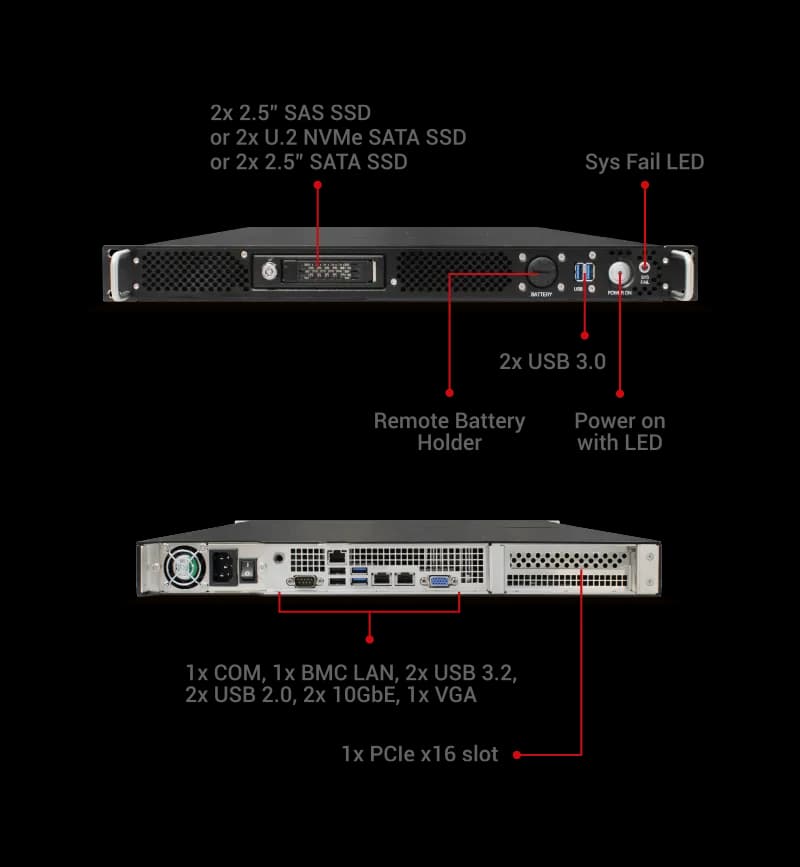

System Features
CPU5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 205W
MemoryUp to 2TB ECC RDIMM, DDR5-5600MT/s in 8 DIMM slots
ChipsetIntel® C741
Network Connectivity1x Dedicated IPMI LAN port
2x 10GbE with RJ45 connectors
2x 10GbE with RJ45 connectors
Serial1x COM port
USB2x USB 2.0 ports (2 rear)
5x USB 3.2 Gen1 ports (2 via header; 2 rear; 1 type A)
5x USB 3.2 Gen1 ports (2 via header; 2 rear; 1 type A)
StorageInternal:
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module (depending on the additional board)
Removable:
Up to 2x 2.5” SAS SSD or
Up to 2x U.2 NVMe SSD or
Up to 2x 2.5” SATA SSD
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module (depending on the additional board)
Removable:
Up to 2x 2.5” SAS SSD or
Up to 2x U.2 NVMe SSD or
Up to 2x 2.5” SATA SSD
TPMTPM Header
I/O connectors1x COM, 1x BMC LAN, 2x USB 3.2, 2x USB 2.0, 2x 10GbE, 1x VGA (available on the rear panel)
Expansion slots1x PCIe 5.0 x16 slot
Operative SystemsWindows® 11 IoT Enterprise, Windows® 10 IoT Enterprise LTSC, Windows Server 2022; Windows Server 2019; RHEL 8.5 64bit; Ubuntu 20.04.6 LTS 64bit; CentOS 8.5 64bit
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health)
Power InputAC or DC input, single PSU. Optional EMC Filter and MIL D38999 connector with single power supply

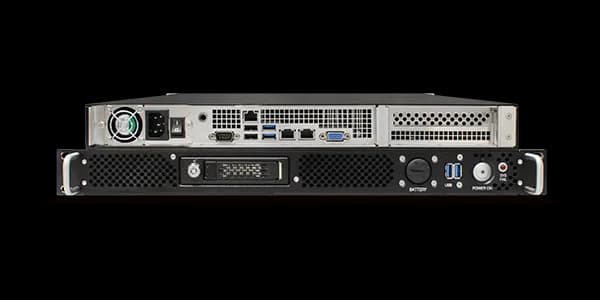

Mechanical Features
Dimensions
(W×D×H)Width 483mm
Depth 450mm – standard I/O ports
Depth 475mm – MIL grade Power Input
Height 44mm – 1U rack
(W×D×H)Width 483mm
Depth 450mm – standard I/O ports
Depth 475mm – MIL grade Power Input
Height 44mm – 1U rack
MaterialMilled Aluminum chassis with surface passivation treatment;
AISI316L Stainless steel rear panel
AISI316L Stainless steel rear panel
Weight>= 7,7 Kg (depending on configuration)
ColourBlack / RAL 9005 – Powder Coating
Mounting 1U 19” rackmount chassis with bridge handles

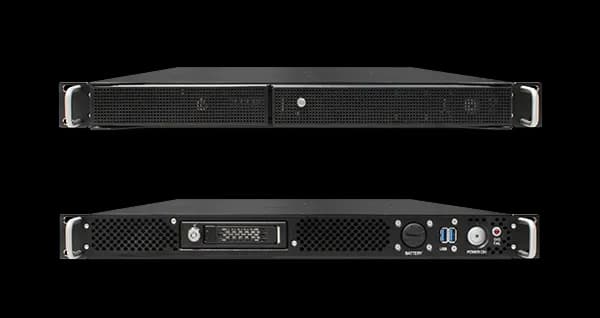

Front Panel
Front PanelIP30 double-door front panel.
Optional door-less front panel.
Power ON with led; 2x USB 3.0; Remote Battery Holder.
Optional door-less front panel.
Power ON with led; 2x USB 3.0; Remote Battery Holder.

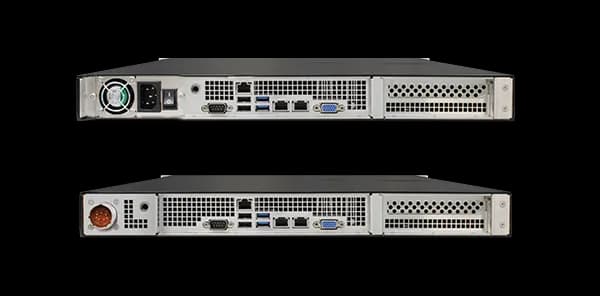

Rear Panel
Rear PanelStandard connectors.
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input.

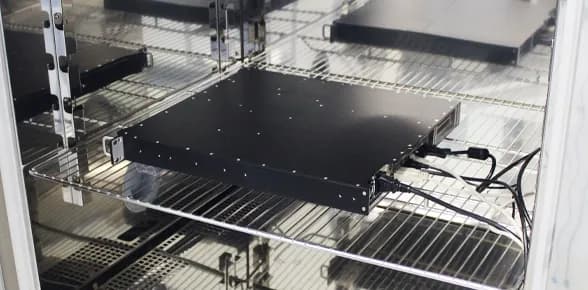

Environmental Features
Operating Temperature Standard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Extended: -20°C to +60°C (depending on configuration)
Extended: -20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Humidity5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II)
FungusConformal coating on request
Shock40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
VibrationsFunctional: MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
EMC/Electromagnetic CompatibilityAccording to MIL-STD-461G with EMI Filter and MIL type connectors on power input
