MAG2C EVO G2

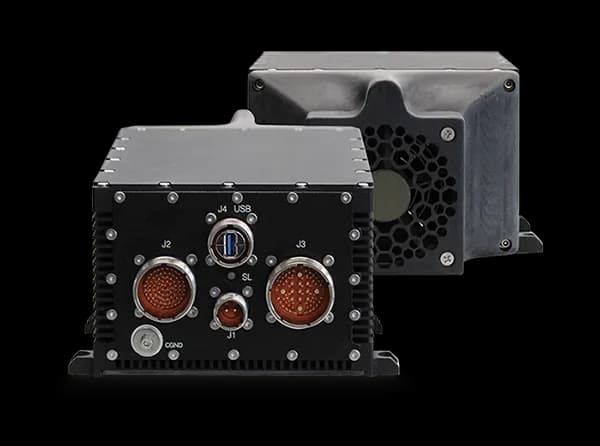

The MAG2C EVO G2 is the latest evolution of the MAG2C Mission Computer, featuring the powerful 13^th Generation Intel^® Core^™ i7 Raptor Lake processor working alongside an NVIDIA RTX A2000 GPU. Designed for critical environments, MAG is a family of rugged OpenVPX-based Mission Computers that deliver high performance for mission-critical applications.

The MAG2C EVO G2 is optimized for GPGPU computing, AI processing, deep learning, and H.265/H.264 encoding & decoding applications. Its forced air cooling ensures efficient heat dissipation, enabling optimal computing performance across diverse environments.

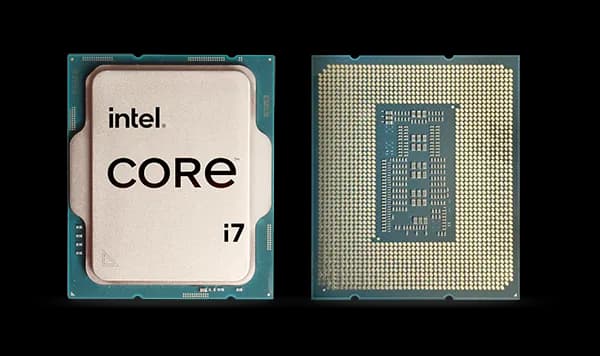

At its core, the MAG2C EVO G2 is powered by the 13^th Generation Intel^® Core^™ i7 Raptor Lake processor, 64GB DDR5 ECC memory and a 480GB soldered NVMe SSD, ensuring exceptional computational performance and efficiency.

The system runs on a dedicated NVIDIA RTX A2000 GPU, based on the Ampere architecture, featuring 2560 CUDA Cores, 80 Tensor Cores for AI acceleration, and 20 RT Cores for real-time ray tracing. The GPU is designed for high-efficiency parallel processing and supports hardware-accelerated H.265/H.264 encoding and decoding, enabling real-time video processing and AI-enhanced applications.

The system offers an extensive video I/O selection, including two 3G-SDI outputs, two 3G-SDI inputs, two independent VGA outputs, and an optional RGB sync-on-green input. A VGA output channel is buffered to support two identical video signal sets, while a DVI-D single link connection on the front panel facilitates maintenance operations. The graphics processor board connects to the SBC via PCI Express^™, ensuring seamless video input transfer into system memory for processing or local Solid State Disk recording.

Beyond graphics, the MAG2C EVO G2 extends its functionality with a comprehensive set of I/O options, including three Gigabit Ethernet ports, four USB 2.0 ports, one USB 3.0 port, and four serial COM ports supporting RS232, RS422, and RS485. It also features stereo audio line-in and line-out, providing additional flexibility for integration into various mission systems.

The system supports an internal 2.5” Serial-ATA III SSD with hardware Secure Erase or Destroy capability, depending on the selected configuration. Designed for both aircraft and ground vehicles, it operates on a 28 VDC power input and includes a 50 ms power hold-up capability for enhanced reliability in demanding environments.

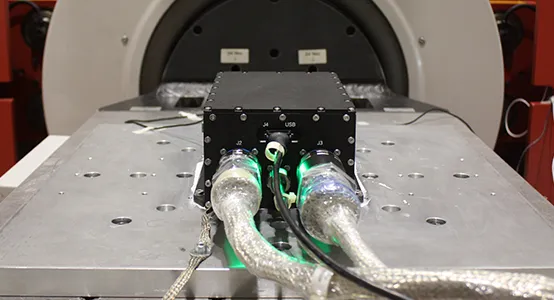

The MAG2C EVO G2 Mission Computer is compliant to MIL-STD-810/MIL-STD-461 and qualified according to RTCA/DO-160G standard, ensuring robust performance in the most extreme conditions.
