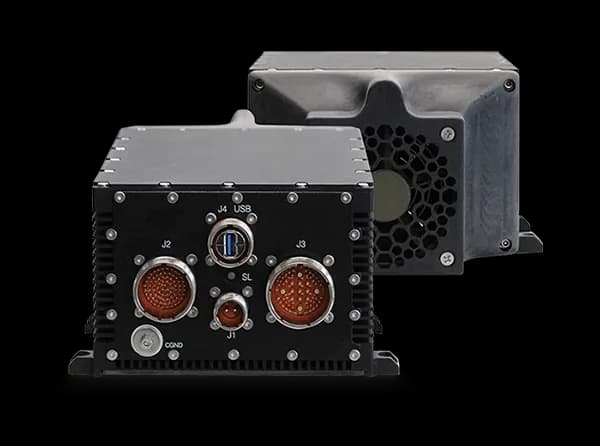

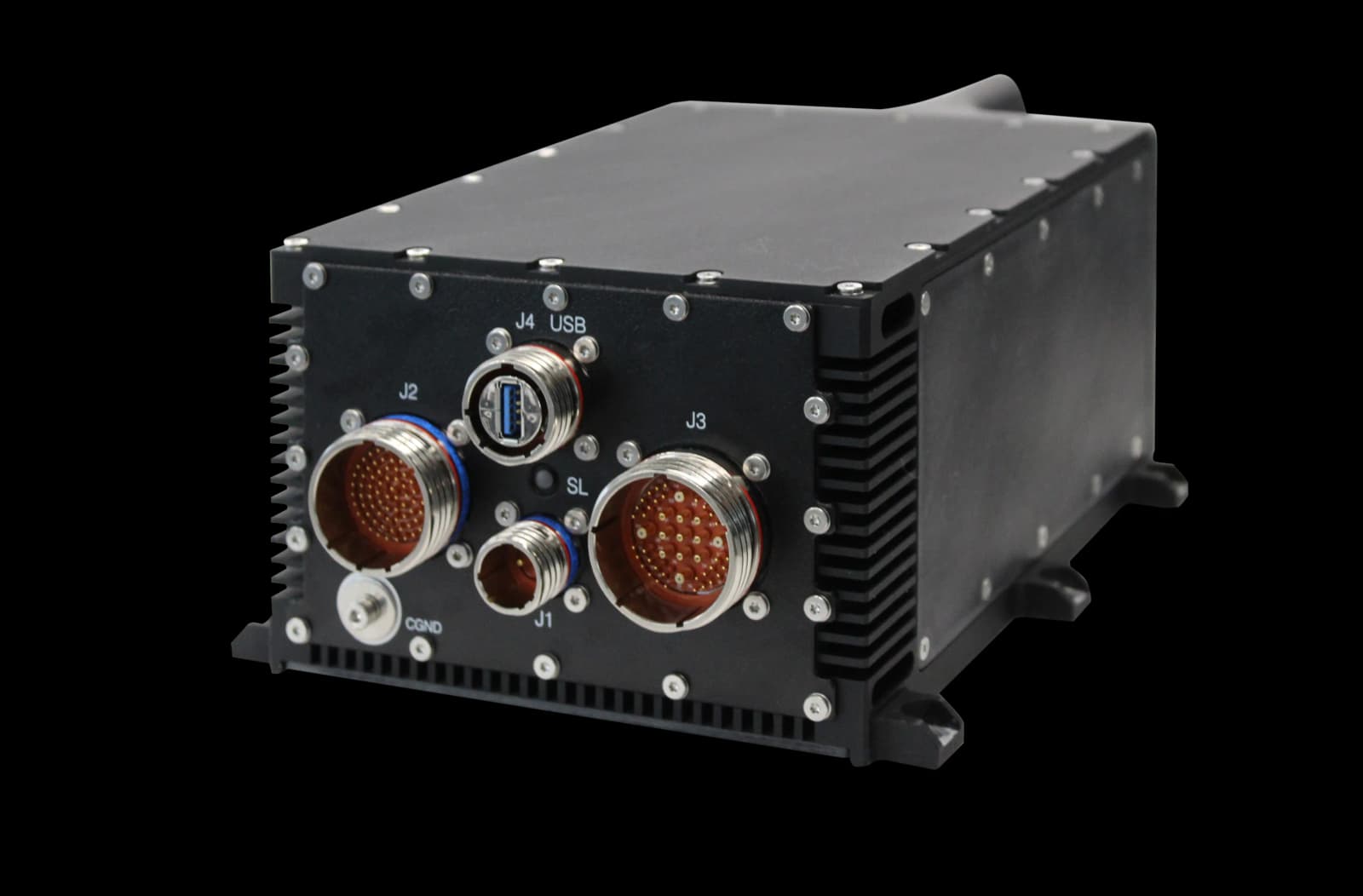

MAG2C EVO

The MAG2C EVO is a high-performance Mission Computer with 3G-SDI graphics & video capture capabilities, tailored for GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding applications; its forced air cooling ensures efficient heat dissipation, enabling optimal computing performance across diverse environments.

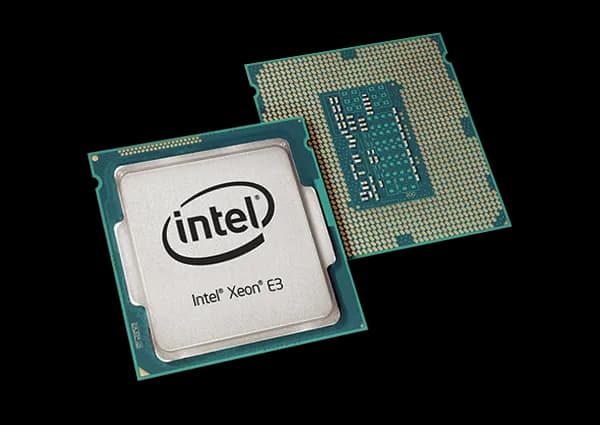

At its core the MAG2C EVO features a Quad Core Intel^® Xeon^® E3-1505M v6 processor, complemented by 16GB DDR4 and a 64GB Flash memory. The unit runs on a dedicated NVIDIA Pascal Quadro P2000 video processor with 4GB of GDDR5 memory and it boasts a comprehensive video I/O selection including 2x 3G-SDI outputs, 2x 3G-SDI inputs, 2x independent VGA outputs, RGB sync-on-green input. Further a VGA output channel is buffered to support two identical video signals sets, while a DVI-D single link connection to the front panel facilitates maintenance activities.

The graphics processor board connects to the SBC via PCI Express^™ enabling seamless transfer of video inputs into system memory for manipulation or local Solid State Disk recording.

The MAG2C EVO extends its functionality with a generous array of I/O options, featuring 3x Gigabit Ethernet ports, 4x USB 2.0 ports, 1x USB 3.0 port, 4x serial COM (RS232/RS422/RS485) ports, and stereo audio line in and out. Additionally, it supports an internal 2.5” Serial-ATA III SSD with hardware Secure Erase or Destroy capability, according to selected configuration; furthermore, it is equipped with a 28 VDC power input, making it suitable for both aircraft and ground vehicles, and features a 50 ms power hold-up capability for enhanced reliability.

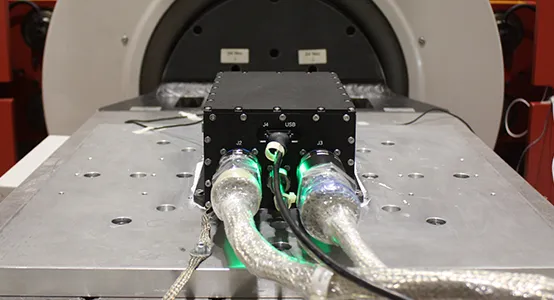

The MAG2C EVO Mission Computer is qualified according to RTCA/DO-160G standards, ensuring robust performance in the most extreme conditions.
