XRS 2U S9 SOLO Series
Extreme Rugged Edge Servers
Intel® Xeon® 6 Processors
810GMIL-STD Qualified
461GMIL-STD EMC
2TBDDR5 ECC Max
2URack-Mount
Overview
The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, offering exceptional robustness and high-performance computing capabilities.
The XRS 2U SOLO delivers rugged performance built upon the capability of the Intel® Xeon® 6700/6500-series processors with P-cores or Intel® Xeon® 6700 processor with E-cores, providing system performance, power efficiency, and feature sets to address the needs of next-generation computer users. The system supports up to 2TB of DDR5 Registered memory and integrates AI acceleration capabilities. It features advanced onboard TPM 2.0 security and PCIe 5.0 support. The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events.
The XRS 2U SOLO features a 2U milled aluminium chassis, providing unmatched resistance and torsional strength essential for Edge computing sites, which often face extreme operational demands. It is available in a 400mm depth configuration with standard I/O connectors and industrial power input, a 450mm version with MIL-grade power input, or a 475mm version with MIL-grade connectors on both I/O ports and power input, addressing the specific requirements of rugged Edge applications.
The chassis supports six full-length PCIe 5.0 expansion slots — three x8 and three x16 — and up to six removable drives, with options for SATA SSD or NVMe SSD. Internal storage includes two M.2 PCIe 5.0 slots. High-speed networking is delivered through dual 10GbE ports, plus a dedicated GbE IPMI management port. The system features an IP30 double-door front panel with air filters and an optional door-less variant, front-accessible USB 3.2 ports, and a removable battery holder for enhanced serviceability.
Qualified to MIL-STD-810G for temperature, shock, and vibration, and compliant with MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are built to meet the most stringent requirements of Edge computing environments.
System Features
CPUIntel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores;
Single Socket LGA-4710 (Socket E2) supported, CPU TDP up to 270W
Single Socket LGA-4710 (Socket E2) supported, CPU TDP up to 270W
MemoryUp to 2TB ECC Registered DIMM, DDR5-6400MT/s in 8 DIMM slots
ChipsetSoC
LAN1x GbE Dedicated IPMI LAN port
2 x 10GbE LAN ports
2 x 10GbE LAN ports
Serial1x COM port(s) (header)
USB2x USB 3.2 Gen1 port(s) (Header)
2x USB 3.2 Gen1 port(s) (Rear)
2x USB 3.2 Gen1 port(s) (Rear)
StorageInternal:
2x M.2 M-Key PCIe 5.0 x2 slots (M-key 22110)
Removable:
Up to 6x U.2 NVMe SSD or
Up to 6x 2.5” SATA SSD
2x M.2 M-Key PCIe 5.0 x2 slots (M-key 22110)
Removable:
Up to 6x U.2 NVMe SSD or
Up to 6x 2.5” SATA SSD
TPMTPM Header
I/O shield1x BMC LAN, 2x USB 3.2, 2x 10GbE, 1x VGA
I/O Expansion3x PCIe 5.0 x8 slots
3x PCIe 5.0 x16 slots
3x PCIe 5.0 x16 slots
Operative SystemsWindows® 11 IoT Enterprise, Windows® 10 IoT Enterprise, Windows® Server 2025, Windows® Server 2022, Linux
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, RAID health, and memory health)
Power InputAC or DC input, redundant PSU.
Optional EMC Filter and MIL D38999 connector with single power supply.
Optional EMC Filter and MIL D38999 connector with single power supply.
Mechanical Features
Dimensions
(W x D x H)Width 483mm
Depth 400mm - standard I/O ports and industrial power input
Depth 450mm - standard I/O ports and MIL grade power input
Depth 475mm - MIL grade connectors on I/O ports and power input
Height 88mm - 2U rack
(W x D x H)Width 483mm
Depth 400mm - standard I/O ports and industrial power input
Depth 450mm - standard I/O ports and MIL grade power input
Depth 475mm - MIL grade connectors on I/O ports and power input
Height 88mm - 2U rack
MaterialMilled Aluminum chassis with surface passivation treatment; AISI316L Stainless steel rear panel
Weight< 8,2 Kg (depending on configuration)
ColorBlack / RAL 9005 - Powder Coating
Mounting2U 19” rackmount chassis with bridge handles
Fan UnitReplaceable 6 x 40mm fans

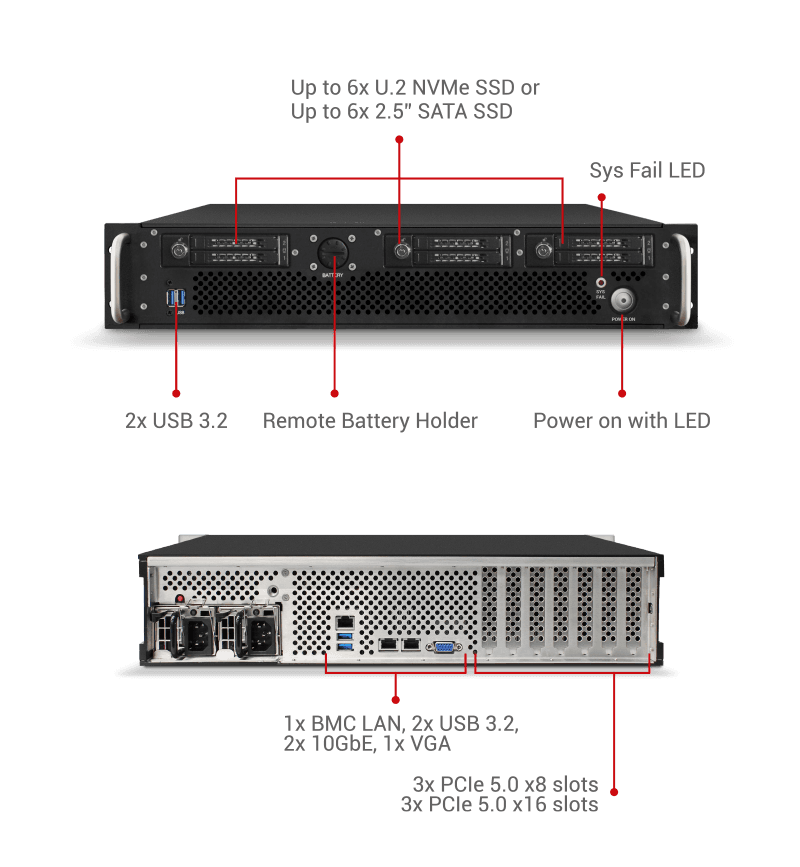

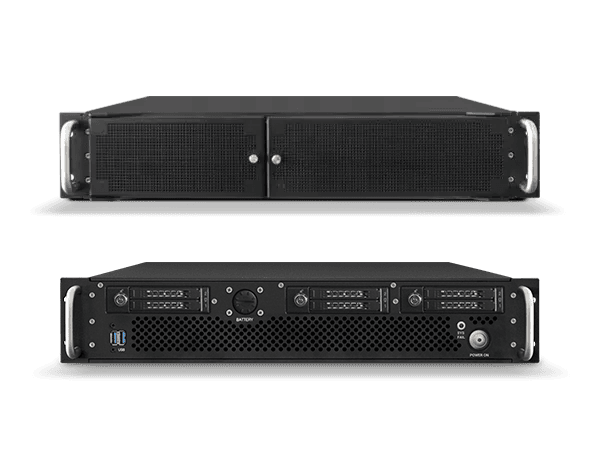

Front Panel

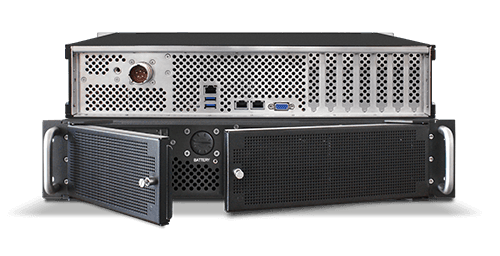

Front PanelIP30 double-door front panel with air filters.
Optional door-less front panel.
Power ON with led; 1 x USB 3.2; Remote Battery Holder.
Optional door-less front panel.
Power ON with led; 1 x USB 3.2; Remote Battery Holder.

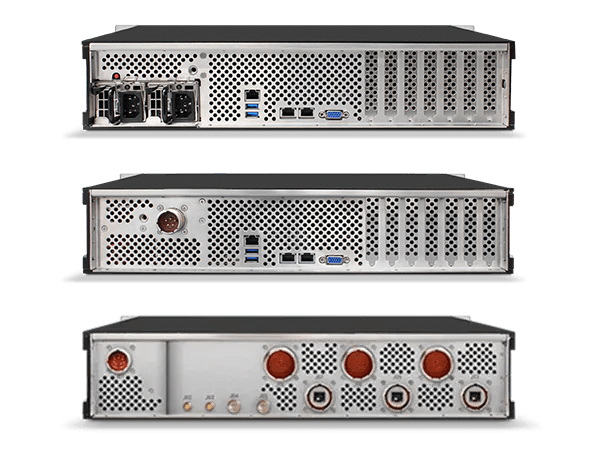

Rear Panel
Rear PanelStandard connectors.
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input and I/O.
Optional D38999 MIL type connectors for Power Input.
Optional D38999 MIL type connectors for Power Input and I/O.
Environmental Features
Operating TemperatureStandard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Extended: -20°C to +60°C (depending on configuration)
Extended: -20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Humidity5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II)
FungusConformal coating on request
Shock40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
VibrationsFunctional: MIL-STD-810G Change 1 (514.7, Category 20 Procedure I - Wheeled vehicle)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I - General exposure)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I - General exposure)
EMC/Electromagnetic CompatibilityAccording to MIL-STD-461G with EMI Filter and MIL type connectors on power input
