XRS 3U-IP S8 SOLO Series
Extreme Rugged Edge Servers with IP54 protection rate
5th/4th Gen Intel® Xeon® Scalable Processors
810GMIL-STD Qualified
IP54Ingress Protection
461GMIL-STD EMC
3URack-Mount
Overview
XRS 3U-IP S8 SOLO delivers rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events.
XRS 3U-IP S8 SOLO Extreme Rugged Server has an IP54 protection rate and features a 3U milled aluminium chassis designed to provide superior resistance. The unit is equipped with MIL-grade connectors for I/O ports and for power input.
XRS 3U-IP S8 SOLO can host up to five full-size PCIe boards including GPU, FPGA modules, and any other high-performance PCI Express board. The front panel includes VGA, IPMI LAN, USB 3.2, and a removable battery holder. Two 3.5” drive bays can host up to six removable SSDs.
Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.

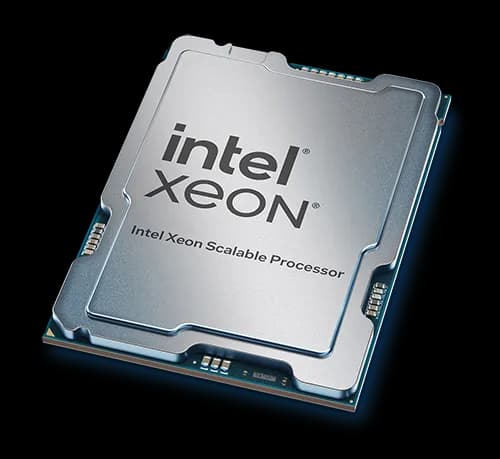

System Features
CPU5thGen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 350W TDP
MemoryUp to 2TB ECC RDIMM, DDR5-4800MT/s in 8 DIMM slots
ChipsetIntel® C741
Graphic1x Aspeed AST2600 BMC port
LAN1x Dedicated IPMI LAN port
2x 10GbE with RJ45 connectors
2x 10GbE with RJ45 connectors
USBOn board:
2x USB 3.2 ports
2x USB 3.2 ports
StorageInternal:
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module
Removable:
Up to 4x U.2 NVMe SSD or Up to 6x 2.5” SATA SSD
2x M.2 NVMe; M-Key, 2280/22110
2x SATA Disk on Module
Removable:
Up to 4x U.2 NVMe SSD or Up to 6x 2.5” SATA SSD
TPMTPM Header
I/O Expansion2x PCIe 5.0 x16 3x PCIe 5.0 x8
Operative SystemsWindows® 11 IoT Enterprise; Windows® 10 IoT Enterprise LTSC; Windows® Server 2022; Windows® Server 2019; Linux
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, raid health, and memory health)
Power InputAC or DC input with EMC Filter and MIL D38999 connector

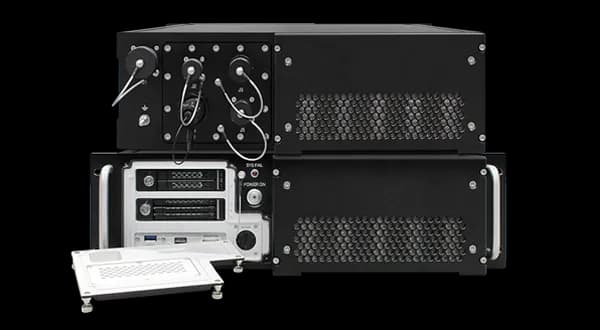

Mechanical Features
Dimensions
(W×D×H)Width 483mm
Depth 530mm including MIL grade connectors on I/O ports and power input
Height 132mm – 3U rack
(W×D×H)Width 483mm
Depth 530mm including MIL grade connectors on I/O ports and power input
Height 132mm – 3U rack
MaterialMilled Aluminum chassis with surface passivation treatment
Weight<25 Kg (depending on configuration)
ColourBlack / RAL 9005 – Powder Coating
Mounting3U 19” rackmount chassis with bridge handles
Fan UnitFront and rear removable fan modules. Front unit with replaceable air filters

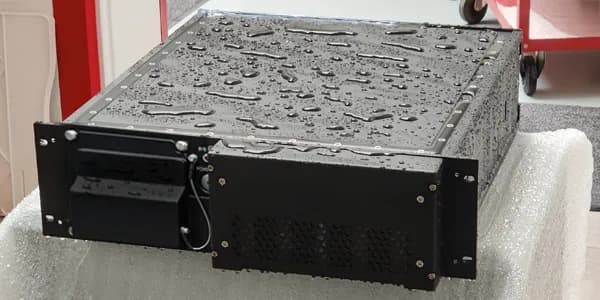

Environmental Features
Operating TemperatureStandard: -5°C to +55°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Extended: -20°C to +60°C (depending on configuration)
Extended: -20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +71°C according to MIL-STD-810G Change 1 (501.6 & 502.6)
Humidity5% to 95% non-condensed according to MIL-STD-810G Change 1 (506.7 Procedure II)
FungusConformal coating
IP ProtectionIP54
Shock40g, 11ms functional shock on each direction, according to MIL-STD-810G Change 1 (516.7 Procedure I)
VibrationsFunctional: MIL-STD-810G Change 1 (514.7, Category 20 Procedure I – Wheeled vehicle)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
Transportation: MIL-STD-810G Change 1 (514.7, Category 7 Procedure I – General exposure)
EMC/Electromagnetic CompatibilityAccording to MIL-STD-461G with EMI Filter and MIL type connectors on power input
