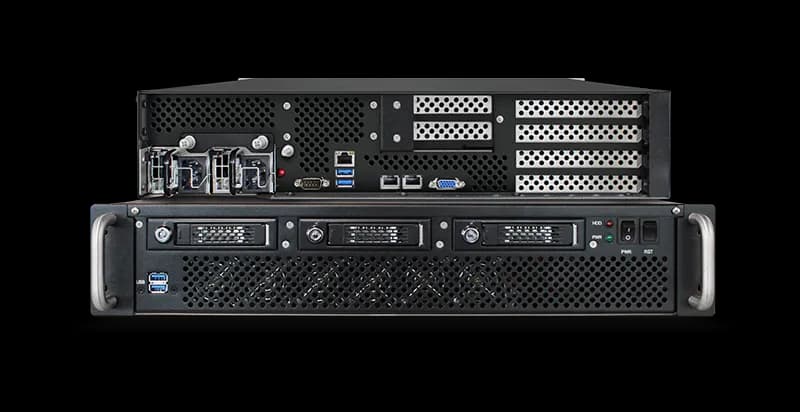

GAP-247R-S9-SOLO Series
2U Single Socket Rugged Edge Server
6th Gen Intel® Xeon® Processors
SingleSocket
470mmDepth
RearI/O
RearPSU
Overview
GAP is a product family of rugged aluminium Servers and Workstations designed for edge applications that require a robust MIL-grade certified computing platform, suitable for operations in critical environments.
The GAP S9 SOLO Series Rugged Edge Servers are equipped with single-socket 6th Gen Intel® Xeon®Processors optimized to deliver new levels of performance across the greatest range of workloads, while offering improved efficiency and lower power consumption. With an innovative modular x86 architecture, the Intel® Xeon® 6 Processor family supports two distinct CPU microarchitectures: Performance-cores (P-cores) deliver outstanding performance across diverse workloads, ideal for AI and HPC applications, while Efficient cores (E-cores) offer high core density and excellent performance per watt.
The GAP S9 SOLO Series Rugged Edge Servers are offered in 1U, 2U and 3U heights and are available in three configurations.
Built to meet MIL-STD-810F standards for temperature and shock resistance, as well as MIL-STD-167-1A standards for vibration tolerance, GAP Rugged Edge Servers ensure reliable operation under the challenging conditions often found at the Edge. Additionally, they can optionally be configured to comply with MIL-STD-461 standards for EMI/EMC, featuring MIL-grade connectors for either the power input or both the I/O connectors and power supply inputs.
System Features
CPUIntel® Xeon® 6700/6500-series processors with P-cores or
Intel® Xeon® 6700 processor with E-cores,
and a thermal design power (TDP) of up to 205 W
Intel® Xeon® 6700 processor with E-cores,
and a thermal design power (TDP) of up to 205 W
MemoryUp to 2TB Registered DIMM DDR5-6400MT/s in 8 DIMM slots
ChipsetSoC
Graphics1x ASPEED AST2600 BMC
Network Connectivity1x Dedicated IPMI LAN port and
2x 10GbE ports supported by Intel X550
2x 10GbE ports supported by Intel X550
StorageOn board:
2 x PCIe 5.0 x2 M.2 NVMe slots
2280 and 22110 form factors (VROC required for RAID)
Removable:
Up to 6x U.2 NVMe SSD or
Up to 9x 2.5” SATA SSD
2 x PCIe 5.0 x2 M.2 NVMe slots
2280 and 22110 form factors (VROC required for RAID)
Removable:
Up to 6x U.2 NVMe SSD or
Up to 9x 2.5” SATA SSD
TPM1x TPM Header
Motherboard I/O shield1x VGA, 2x USB 3.2, 2x 10GbE LAN, 1x BMC LAN, 1x COM (available on the rear panel)
Expansion slots1x FHFL PCIe 5.0 x16 slot, 2x FHFL PCIe 5.0 x8 (in x16) slots
and 2x LP PCIe 5.0 x8 slots (low profile)
Optional:
2x FHFL PCIe 5.0 x16 slots and 2x LP PCIe 5.0 x8 slots (low profile)
and 2x LP PCIe 5.0 x8 slots (low profile)
Optional:
2x FHFL PCIe 5.0 x16 slots and 2x LP PCIe 5.0 x8 slots (low profile)
Operative SystemsWindows® 11 IoT Enterprise, Windows® 10 IoT Enterprise, Windows® Server 2025, Windows® Server 2022, Linux
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure,
power consumption, disk health, RAID health, and memory health)
power consumption, disk health, RAID health, and memory health)
Power SupplyAC or DC Redundant Power Supply – Optional AC Single

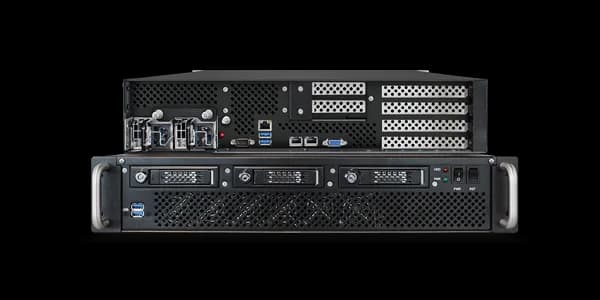

Mechanical Features
Dimensions
(W x H x D)483 x 88 x 470 mm
(W x H x D)483 x 88 x 470 mm
MaterialAluminum with surface passivation treatment
ColourBlack / RAL 9005 – Powder Coating
Mounting2U 19” rackmount chassis
Optional Telescopic slides
Optional Telescopic slides
ConfigurationRear I/O – Rear Power Supply
Front Panel Leds / ButtonsPower On/Off button with LED
Reset button with LED
2x USB 3.0
Reset button with LED
2x USB 3.0
Fans6x 40mm heavy duty fans
Environmental Features
Operating Temperatures0°C to +50°C
MIL-STD-810H, Method 501.7 & 502.7
MIL-STD-810H, Method 501.7 & 502.7
Storage Temperature-40°C to +70°C
MIL-STD-810H, Method 501.7 & 502.7
MIL-STD-810H, Method 501.7 & 502.7
Humidity5% – 95% non-condensing
MIL-STD-810H 507.6
MIL-STD-810H 507.6
Operating VibrationsMIL-STD-167-1A, Type I
Not Operating Vibrations1.17 Grms, 5-500 Hz
MIL-STD-810H, Method 514.8
MIL-STD-810H, Method 514.8
Operating Shocks20g / 11ms – half sine
MIL-STD-810G, Method 516.7
MIL-STD-810G, Method 516.7
EMCDirective 2014/35/UE-LVDC
Directive 2014/30/UE-EMC
Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006
MIL-STD-461G (on request)
Directive 2014/30/UE-EMC
Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006
MIL-STD-461G (on request)
