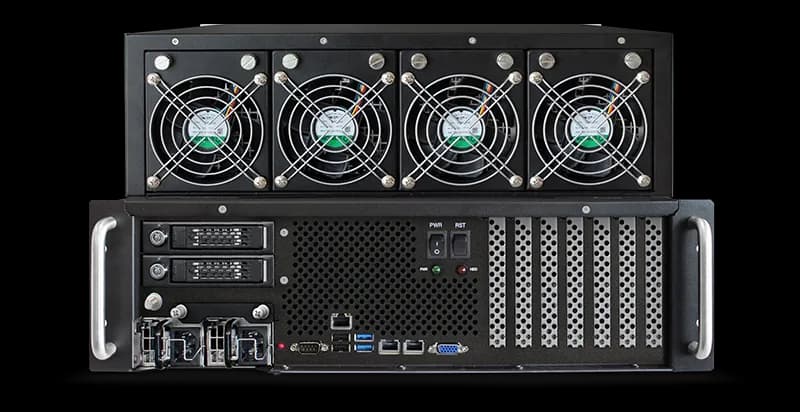

GAP-351P-S9 Series
3U Dual Socket Rugged Edge Server
6th Gen Intel® Xeon® Processors
DualSocket
510mmDepth
FrontI/O
FrontPSU
Overview
GAP is a product family of rugged aluminium Servers and Workstations designed for edge applications that require a robust MIL-grade certified computing platform, suitable for operations in critical environments.
The GAP S9 series rugged edge servers are equipped with dual-socket 6 Intel® Xeon® 6 Scalable Processors optimized to deliver new levels of performance across the greatest range of workloads, while offering improved efficiency and lower power consumption.
With an innovative modular x86 architecture, the Intel Xeon 6 family supports two distinct CPU microarchitectures: Performance-cores (P-cores) deliver outstanding performance across diverse workloads, ideal for AI and HPC applications, while Efficient cores (E-cores) offer high core density and excellent performance per watt.
Built to meet MIL-STD-810F standards for temperature and shock resistance, as well as MIL-STD-167-1A standards for vibration tolerance, GAP rugged edge servers ensure reliable operation under the challenging conditions often found at the edge. Additionally, they can optionally be configured to comply with MIL-STD-461 standards for EMI/EMC, featuring MIL-grade connectors for either the power input or both the I/O connectors and power supply inputs.

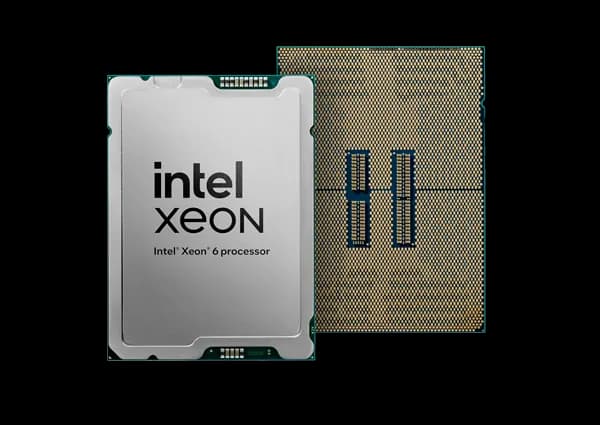

System Features
CPUDual Intel® Xeon® 6700/6500-Series Processors with P-Cores
and Intel® Xeon® 6700-Series Processors with E-Cores (in LGA 4710 Socket E2), CPU TDP supports up to 270W TDP
and Intel® Xeon® 6700-Series Processors with E-Cores (in LGA 4710 Socket E2), CPU TDP supports up to 270W TDP
MemoryUp to 4TB Registered DIMM, DDR5 6400MT/s in 16 DIMM slots
ChipsetSoC
Graphics1x ASPEED AST2600 BMC
Network Connectivity1x Dedicated IPMI LAN port
2x 10GbE ports supported by Broadcom 57416
2x 10GbE ports supported by Broadcom 57416
StorageInternal:
2x PCIe 5.0 x4 NVMe M.2 slots
M-Key 2280 and 22110 form factors
Removable:
Up to 4x U.2 NVMe SSDs or
Up to 6x 2.5” SATA SSDs
2x PCIe 5.0 x4 NVMe M.2 slots
M-Key 2280 and 22110 form factors
Removable:
Up to 4x U.2 NVMe SSDs or
Up to 6x 2.5” SATA SSDs
TPM1x TPM Header
Motherboard I/O shield2x 10 GbE LAN, 1x BMC LAN, 4x USB 3.0, VGA, COM (available on the front panel)
Expansion slots4x PCIe 5.0 x16 slots – 4x FHFL
2x PCIe 5.0 x8 slots – 1x FHFL + 1x FHHL
2x PCIe 5.0 x8 slots – 1x FHFL + 1x FHHL
Operative SystemsWindows® 11 IoT Enterprise, Windows® 10 IoT Enterprise, Windows® Server 2025, Windows® Server 2022, Linux
IPMIIPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure,
power consumption, disk health, RAID health, and memory health)
power consumption, disk health, RAID health, and memory health)
Power SupplyAC or DC Redundant Power Supply – Optional AC Single

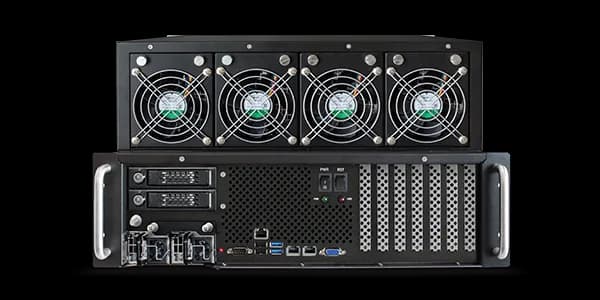

Mechanical Features
Dimensions
(W x H x D)483 x 132 x 510 mm
(W x H x D)483 x 132 x 510 mm
MaterialAluminum with surface passivation treatment
ColourBlack / RAL 9005 – Powder Coating
Mounting3U 19” rackmount chassis
Optional Telescopic slides
Optional Telescopic slides
ConfigurationFront I/O – Front Power Supply
Front Panel Leds / ButtonsPower On/Off button with LED
Reset button with LED
Reset button with LED
Fans4x 92mm removable heavy duty fans

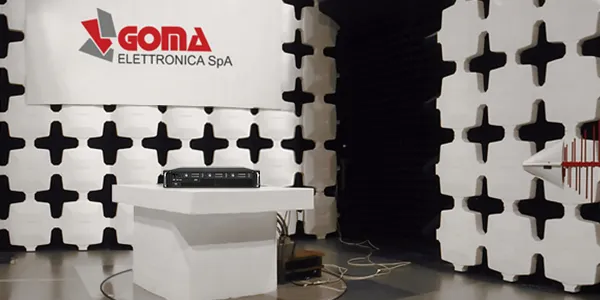

Environmental Features
Operating Temperatures0°C to +50°C
MIL-STD-810H, Method 501.7 & 502.7
MIL-STD-810H, Method 501.7 & 502.7
Storage Temperature-40°C to +70°C
MIL-STD-810H, Method 501.7 & 502.7
MIL-STD-810H, Method 501.7 & 502.7
Humidity5% – 95% non-condensing
MIL-STD-810H 507.6
MIL-STD-810H 507.6
Operating VibrationsMIL-STD-167-1A, Type I
Not Operating Vibrations1.17 Grms, 5-500 Hz
MIL-STD-810H, Method 514.8
MIL-STD-810H, Method 514.8
Operating Shocks20g / 11ms – half sine
MIL-STD-810G, Method 516.7
MIL-STD-810G, Method 516.7
EMCDirective 2014/35/UE-LVDC
Directive 2014/30/UE-EMC
Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006
MIL-STD-461G (on request)
Directive 2014/30/UE-EMC
Directive 2011/65/UE – RoHS
Regulation EC No 1907/2006
MIL-STD-461G (on request)
