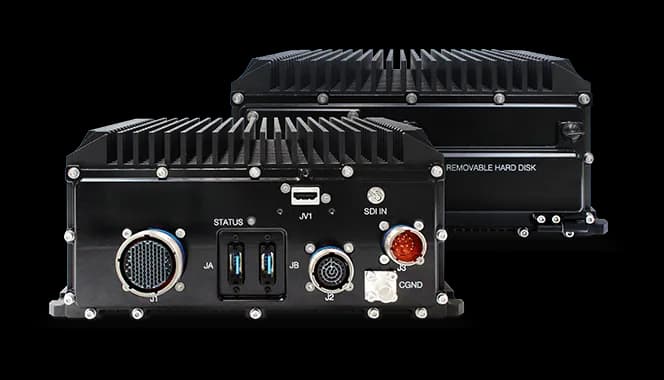

AWS EVO-SDI
Advanced Mission Computer with Dual Removable Disk and HD-SDI Input
11th Gen Intel Xeon W Processors
DO-160GRTCA Qualified
810GMIL-STD Qualified
SDIHD-SDI Input
0 dBAFanless
Overview
The AWS EVO-SDI is a high-performance rugged Mission Computer designed for heavy edge workloads and real-time video processing applications. Featuring an HD-SDI video input alongside HDMI and VGA outputs, the AWS EVO-SDI is SWaP-C optimized with a fanless design that requires no external airflow.
The AWS EVO-SDI features a high-end eight-Core 11th Gen Intel® Xeon® W Processor (Tiger Lake) with 32GB DDR4 dualchannel memory to provide excellent overall performance. Its video interfaces include 1x HDMI output, 1x HD-SDI input, and 1x VGA output, enabling seamless integration with highresolution sensors and situational awareness systems.
The system provides robust connectivity, including 4x Gigabit Ethernet ports, 2x USB 3.0, 4x USB 2.0, PS/2, 4x COM ports, and 2x SATA 6 Gb/s ports with RAID support. For storage, the AWS EVO-SDI offers a Type II CFlash slot accessible from the front panel, and two front-ounted hot-swappable SATA bays supporting 2.5″ SSDs with Secure Erase.
The AWS EVO-SDI is design to meet MIL-STD-810G and RTCA/DO-160G, ensuring reliable operation in harsh environments.
System Features

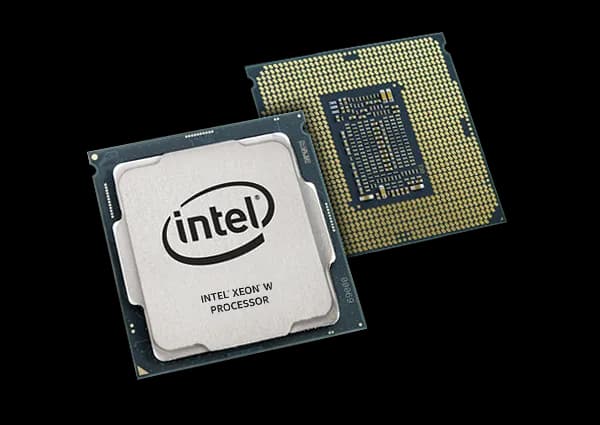

Processor Module11th Gen Intel® Xeon® W-11865MRE 2.60 GHz, 24MB, 8C/16T
Memory2x 32GB Dual channel 2933MT/s DDR4 memory; ECC / non ECC support
Video InputDigital HD-SDI input with flexible capture up to 1080p30
Video Outputs2 independent and simultaneous displays (1x HDMI, 1x VGA)
Ethernet1x 10/100/1000 GbE LAN interface with I219 controller
3x 10/100/1000 GbE LAN interfaces with I210 controller
3x 10/100/1000 GbE LAN interfaces with I210 controller
Serial4x programmable serial ports RS232/RS422/RS485
USB2x USB 3.0 on the front panel (Omnetics Quick Lock USB 3.0 Micro-D connectors)
2x USB 2.0 (on MIL-DTL-38999 connectors)
2x additional USB 2.0 ports type A standard receptacles internally available (maintenance)
2x USB 2.0 (on MIL-DTL-38999 connectors)
2x additional USB 2.0 ports type A standard receptacles internally available (maintenance)
PS/22x PS/2 for keyboard and mouse
AudioIntel® HD Audio integrated in chipset
1x AUDIO IN (left/right)
1x AUDIO OUT (left/right)
1x AUDIO IN (left/right)
1x AUDIO OUT (left/right)
I/O Expansion4x discrete inputs
Removable Storage Devices2x removable 2.5” SATA SSD with secure erase option
1x removable CFast card
1x removable CFast card
SoftwareWindows 11 IoT Enterprise, Windows 10 IoT Enterprise, Linux 64-bit
Power Input28V nominal (15 to 36 Vdc continuous range). Input tolerance according to MIL-STD-704F
Power Consumption80W
FeaturesTolerant to power interruptions up to 50ms (integrated hold-up module)
Over voltage protection
Over current protection
Input transient protection
Over voltage protection
Over current protection
Input transient protection

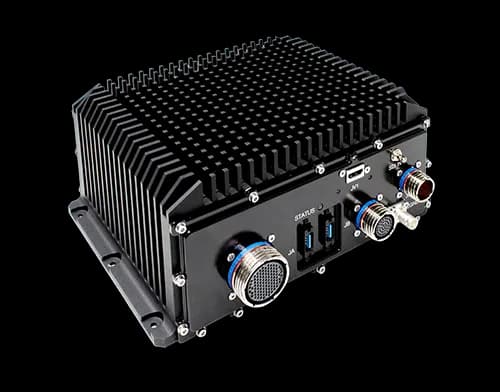

Mechanical Features
Dimensions
(W x D x H)256.0 mm x 203.0 mm x 116.0 mm
(W x D x H)256.0 mm x 203.0 mm x 116.0 mm
Weight5.3 Kg
CoolingFanless design, no external forced airflow is required
Interfaces3x MIL-DTL-38999 Military circular connectors
2x USB 3.0 Quick Lock USB 3.0 Micro-D connectors
1x HDMI (with mating retention via custom backshell) 1x BNC
2x USB 3.0 Quick Lock USB 3.0 Micro-D connectors
1x HDMI (with mating retention via custom backshell) 1x BNC

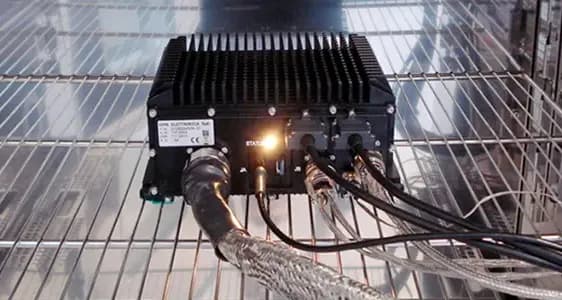

Environmental Features
Operating Temperature-45°C / +70°C (RTCA/DO-160G Section 4, Category B2)*
*CFast configuration limited to -20°C / +55°C (RTCA/DO-160G Section 4, Category B1)
*CFast configuration limited to -20°C / +55°C (RTCA/DO-160G Section 4, Category B1)
Storage Temperature-40°C / +85°C (RTCA/DO-160G Section 4, Category B2 with deviation)
Temperature VariationCompliant to RTCA DO-160G Section 5, Category B
AltitudeOperative: max 25.000 feet (RTCA/DO-160G Section 4, Category B2)
HumidityUp to 95% (RTCA/DO-160G Section 6, Category A)
Shock6g shock, 11ms (RTCA/DO-160G Section 7, Category A)
Crash Safety20g shock, 11ms (RTCA/DO-160G Section 7, Category B)
VibrationsRotary wing: qualified according to RTCA/DO-160G Section 8, Category U Curve G
Fixed wing: qualified according to RTCA/DO-160G Section 8, Category S Curve M
Fixed wing: qualified according to RTCA/DO-160G Section 8, Category S Curve M
WaterproofnessCompliant to RTCA/DO-160G, Section 10, Category W
Fungus ProtectionCompliant to RTCA/DO-160G, Section 13, Category F
EMI / Electrical FeaturesCompliant to RTCA DO-160G, Sections 15, 17, 18, 19, 20, 21, 25
Compliant to MIL-STD-704F (Power Input and 50ms hold-up)
Compliant to MIL-STD-704F (Power Input and 50ms hold-up)
