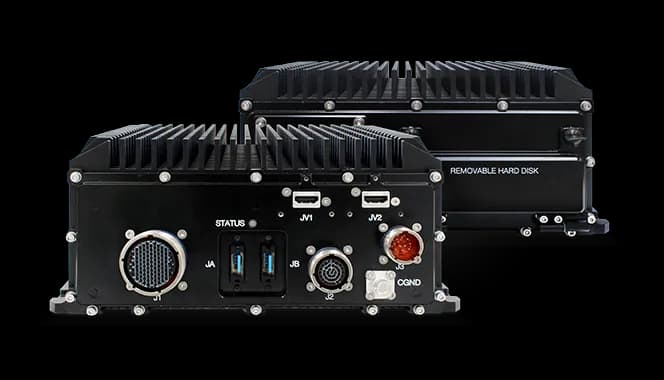

AWS EVO
Advanced Mission Computer with Dual Removable Disk
11th Gen Intel Xeon W Processors
DO-160GRTCA Qualified
810GMIL-STD Qualified
2×Removable SSD
0 dBAFanless
Overview
The AWS EVO is a high performance rugged Mission Computer built for heavy edge workloads and multi-media applications. Featuring multiple display control and audio interfaces, the AWS EVO is SWaP-C optimized and has a fanless design with no external airflow prescriptions.

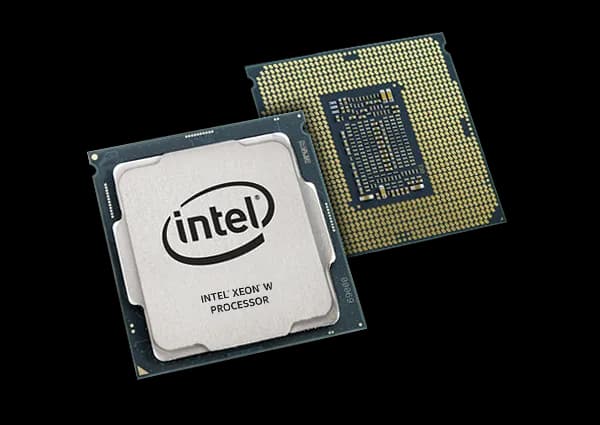

The AWS EVO features an high end eight-Core 11th Gen Intel® Xeon® W Processor (Tiger Lake) or a powerful Hexa-Core 9th Gen Intel® Xeon® E Processor (Coffee Lake Refresh) and 32GB DDR4 dual-channel memory to provide an excellent overall performance.
Video outputs include three independent ports (2x HDMI + 1x VGA) while input/output ports offer Audio, 4x Gigabit Ethernet ports, 2x USB 3.0 ports and 4x USB 2.0 ports, PS/2, 4x COM ports and 2x SATA 6 Gb/s ports with RAID support.
The AWS EVO comes with several storage options: an internal mSATA module, a Type II CFlash slot accessible from the front panel and two front-mounted hot-swappable SATA ports suitable for the installation of two 2.5″ SSDs with Secure Erase option. An internal MiniPCI Express slot is available for further expansion in alternative to the mSATA option. The AWS EVO is compliant to MIL-STD-810G certifications and to RTCA/DO-160G.
System Features
Processor Module9th Gen Intel® Xeon® E-2276ML, 2.0/4.2GHz, 12MB, 6C/12T
11th Gen Intel® Xeon® W-11865MRE 2.60 GHz, 24MB, 8C/16T
11th Gen Intel® Xeon® W-11865MRE 2.60 GHz, 24MB, 8C/16T
Memory2x 16GB Dual channel 2133/2400 MHz DDR4 memory in dual SODIMM sockets;
ECC / non ECC support (9th Gen)
2x 32GB Dual channel 2933MT/s DDR4 memory; ECC / non ECC support (11th Gen)
ECC / non ECC support (9th Gen)
2x 32GB Dual channel 2933MT/s DDR4 memory; ECC / non ECC support (11th Gen)
Video Outputs3 independent and simultaneous displays (2x HDMI, 1x VGA)
Ethernet1x 10/100/1000 GbE LAN interface with I219 controller
3x 10/100/1000 GbE LAN interfaces with I210 controller
3x 10/100/1000 GbE LAN interfaces with I210 controller
Serial4x programmable serial ports RS232/RS422/RS485
USB2x USB 3.0 on the front panel (Omnetics Quick Lock USB 3.0 Micro-D connectors)
2x USB 2.0 (on MIL-DTL-38999 connector)
2x additional USB 2.0 ports type A standard receptacles internally available (maintenance)
2x USB 2.0 (on MIL-DTL-38999 connector)
2x additional USB 2.0 ports type A standard receptacles internally available (maintenance)
PS/22x PS/2 for keyboard and mouse
AudioIntel® HD Audio integrated in chipset
1x AUDIO IN (left/right)
1x AUDIO OUT (left/right)
1x AUDIO IN (left/right)
1x AUDIO OUT (left/right)
I/O Expansion4x discrete inputs
1x MiniPCI Express slot for additional interfaces such as MIL-STD-1553 or ARINC-429
Additional I/O routed on J2 connector
1x MiniPCI Express slot for additional interfaces such as MIL-STD-1553 or ARINC-429
Additional I/O routed on J2 connector
Internal Storage Devices1x mSATA slot
Removable Storage Devices2x removable 2.5” SATA SSD with secure erase option
1x removable CFast card
1x removable CFast card
SoftwareWindows 11, Windows 10, Linux 64-bit
Power Input28V nominal (15 to 36 Vdc continuous range). Input tolerance according to MIL-STD-704F
Power Consumption80W
FeaturesTolerant to power interruptions up to 50ms (integrated hold-up module)
Over voltage protection
Over current protection
Input transient protection
Over voltage protection
Over current protection
Input transient protection

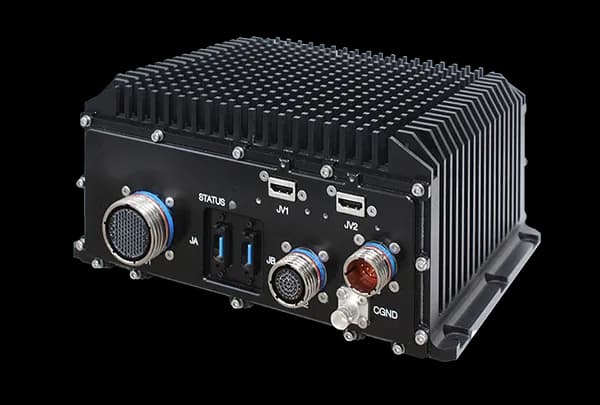

Mechanical Features
Dimensions
(W × D × H)256.0 mm x 203.0 mm x 116.0 mm
(W × D × H)256.0 mm x 203.0 mm x 116.0 mm
Weight5.3 Kg
CoolingFanless design, no external forced airflow is required
Interfaces3x MIL-DTL-38999 Military circular connectors
2x USB 3.0 Quick Lock USB 3.0 Micro-D connectors
2x HDMI (with mating retention via custom backshell)
2x USB 3.0 Quick Lock USB 3.0 Micro-D connectors
2x HDMI (with mating retention via custom backshell)

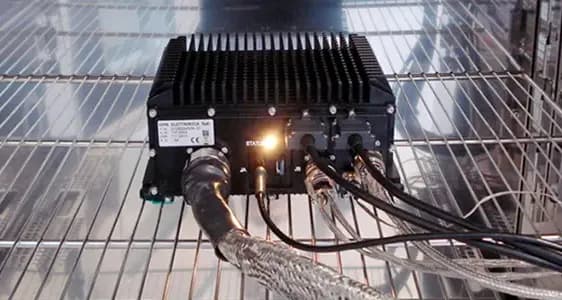

Environmental Features
Operating Temperature-45°C / +70°C (RTCA/DO-160G Section 4, Category B2)*
*CFast configuration limited to -20°C / +55°C (RTCA/DO-160G Section 4, Category B1)
*CFast configuration limited to -20°C / +55°C (RTCA/DO-160G Section 4, Category B1)
Storage Temperature-40°C / +85°C (RTCA/DO-160G Section 4, Category B2 with deviation)
Temperature VariationCompliant to RTCA DO-160G Section 5, Category B
AltitudeOperative: max 25.000 feet (RTCA/DO-160G Section 4, Category B2)
HumidiityUp to 95% (RTCA/DO-160G Section 6, Category A)
Shock6g shock, 11ms (RTCA/DO-160G Section 7, Category A)
Crash Safety20g shock, 11ms (RTCA/DO-160G Section 7, Category B)
VibrationsRotary wing: qualified according to RTCA/DO-160G Section 8, Category U Curve G
Fixed wing: qualified according to RTCA/DO-160G Section 8, Category S Curve M
Fixed wing: qualified according to RTCA/DO-160G Section 8, Category S Curve M
WaterproofnessCompliant to RTCA/DO-160G, Section 10, Category W
Fungus Protection Compliant to RTCA/DO-160G, Section 13, Category F
EMI / Electrical FeaturesCompliant to RTCA DO-160G, Sections 15, 17, 18, 19, 20, 21, 25
Compliant to MIL-STD-704F (Power Input and 50ms hold-up)
Compliant to MIL-STD-704F (Power Input and 50ms hold-up)
