Home/Solutions/GAP/W9/GAP-145F-W9 Series

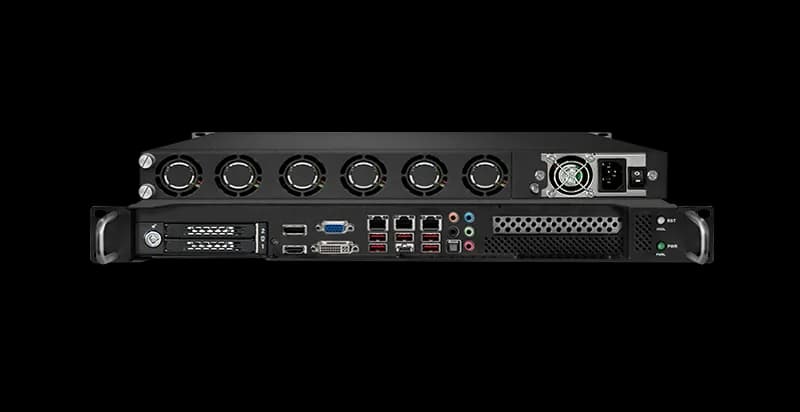

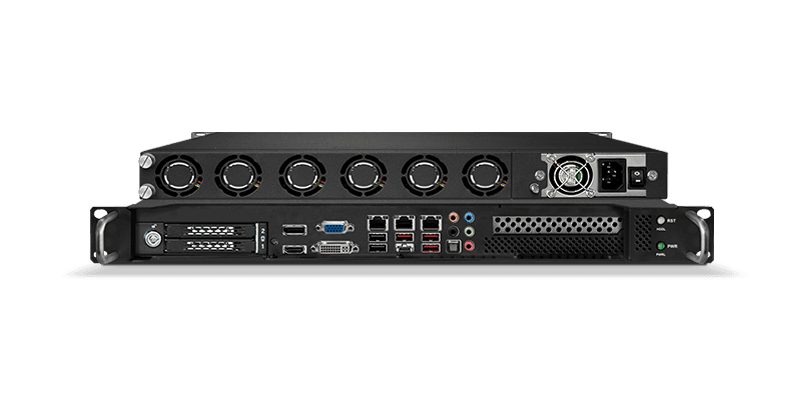

GAP-145F-W9 Series

1U Rugged Workstation

14th/13th Gen Intel® Core™ Processors

GAP-145F-W9_hero
SingleSocket
450mmDepth
FrontI/O
RearPSU

Overview

GAP is a product family of rugged aluminium servers and workstations designed for Edge applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments. The GAP W9 Series Rugged Edge Workstations are designed for Edge applications where environmental conditions are typically critical, demanding durable and reliable computing infrastructure.

These workstations feature 14th/13th Gen. Intel® Core™ i9/i7/i5/i3 Processors, harnessing state-of-the-art computing innovations to deliver exceptional performance, improved energy efficiency, and robust support for advanced AI capabilities and high-speed connectivity.

The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events, which is essential for maintaining system integrity in remote and harsh environments.

Built to meet MIL-STD-810F standards for temperature and shock resistance, as well as MIL-STD-167-1A standards for vibration tolerance, GAP Rugged Edge Workstations ensure reliable operation under the challenging conditions often found at the Edge. Additionally, they can optionally be configured to comply with MIL-STD-461 standards for EMI/EMC, featuring MIL-grade connectors for either the power input or both the I/O connectors and power supply inputs, further enhancing their suitability for Edge applications.

System Features

W9-System_Features

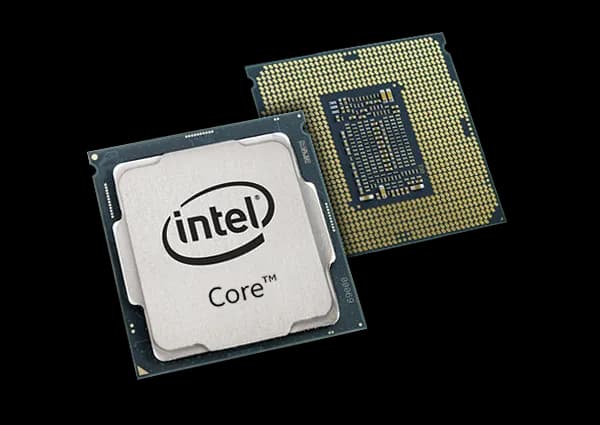

CPU14th/13th Gen Intel® Core™ i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 65W TDP
Memory192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
ChipsetIntel® W680
Graphics1 Aspeed AST2600 BMC port
Network Connectivity1x RJ45 Dedicated IPMI LAN port 1x RJ45 Gigabit Ethernet LAN ports 1x RJ45 2.5 Gigabit Ethernet LAN port
StorageInternal: 3x M.2 PCIe 4.0 x4 Form Factor: 2280; M.2 Key: M-Key (RAID 0, 1, 5) Removable: Up to 1x 2.5” SAS SSD or Up to 2x U.2 NVMe SSD or Up to 3x 2.5” SATA SSD
TPM1 TPM Header
Motherboard I/O shield3x USB 3.2, 1x USB 3.2 Type C; 2x GbE, 1x IPMI LAN, Audio, HDMI, DVI-D, DP, VGA (available on the front panel)
Expansion slots1x PCIe x16
Operative SystemsWindows® 11 IoT Enterprise, Windows® 10 IoT Enterprise, Windows® Server 2022, Debian Linux 11 (64-bit); Ubuntu Linux 18.04 LTS Server Edition (64-bit); Ubuntu Linux 20.04 LTS Server Edition (64-bit); Red Hat® Enterprise Linux® 8 Server
IPMIIPMI 2.0, SPM, Watchdog, SNMP and e-mail alarms and notifications
Remote MonitoringMonitoring, control, and management functions (fan speed, temperature, voltage, redundant power failure, power consumption, disk health, RAID health, and memory health)
Power SupplyAC Single Power Supply DC Single Power Supply

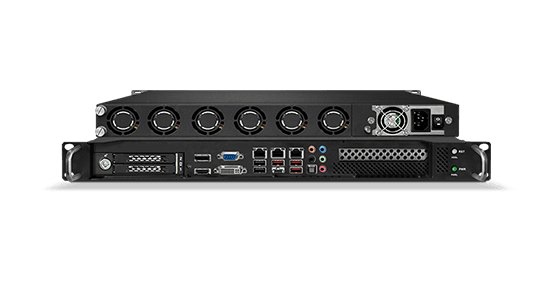

Mechanical Features

Dimensions483 x 44 x 450 mm (W x H x D)
MaterialAluminum with surface passivation treatment
ColourBlack / RAL 9005 – Powder Coating
Mounting 1U 19” rackmount chassis Optional Telescopic slides
ConfigurationFront I/O – Rear Power Supply
Front Panel Leds / Buttons / ConnectorsLed Power ON and SSD functionality; Power ON / OFF and System Reset
Fans6x internal PWM fans
GAP-145F-W9_Mechanical_Features

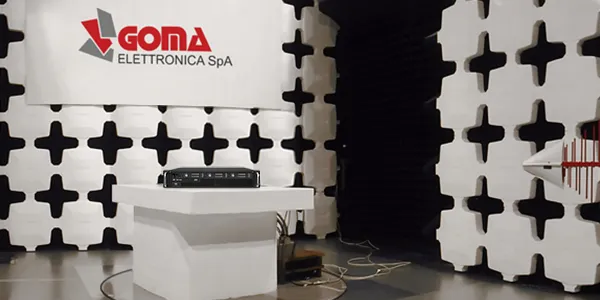

Environmental Features

W9-Environmental_Features
Operating Temperatures0°C to +50°C MIL-STD-810H, Method 501.7 & 502.7 -20°C to +60°C (depending on configuration)
Storage Temperature-40°C to +70°C MIL-STD-810H, Method 501.7 & 502.7
Humidity5% – 95% non-condensing MIL-STD-810H 507.6
Operating VibrationsMIL-STD-167-1A, Type I
Not Operating Vibrations1.17 Grms, 5-500 Hz MIL-STD-810H, Method 514.8
Operating Shocks20g / 11ms – half sine MIL-STD-810G, Method 516.7
EMCDirective 2014/35/UE-LVD | Directive 2014/30/UE-EMC | Directive 2011/65/UE – RoHS Regulation EC No 1907/2006 | MIL-STD-461G (on request)
