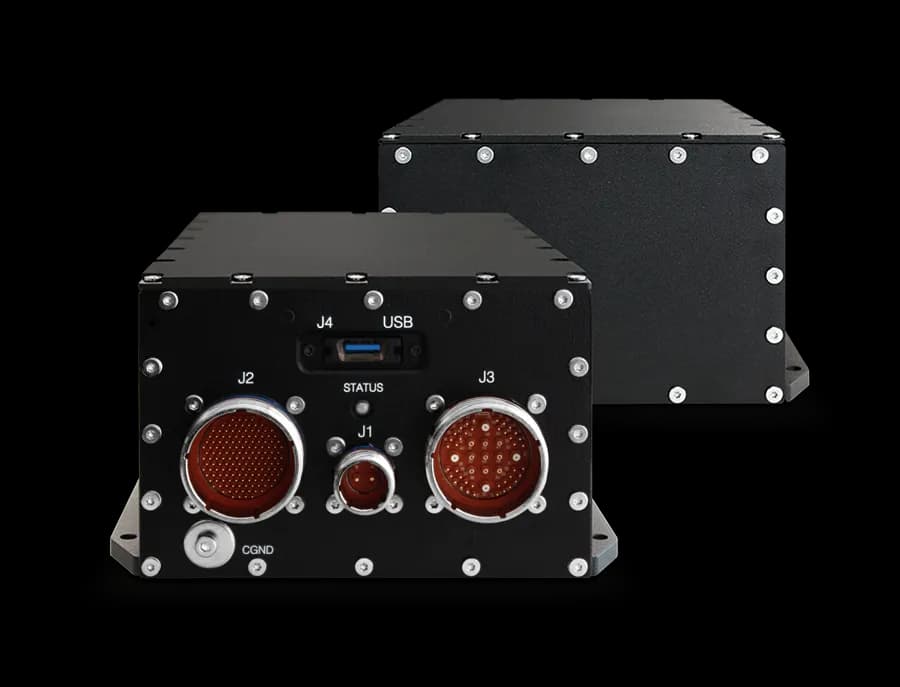

MAG2A IO

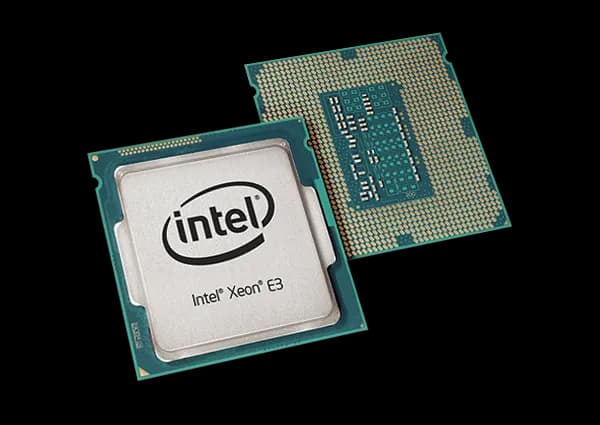

MAG is a family of rugged Mission Computers OpenVPX based designed for critical environment applications. The MAG2A IO is a high-performance Mission Computer with 3G-SDI graphics & video capture capabilities and Multiple I/O offering, designed for GPGPU computing, AI processing, deep learning and H.265/H.264 encoding & decoding applications. At the heart of the unit there is a Quad Core Intel^® Xeon^® E3-1505M v6 processor, with a 16GB DDR4 and a 64GB Flash memory.

The MAG2A IO is powered by a NVIDIA Pascal Quadro P2000 dedicated video processor with a 4GB GDDR5 memory, and a rich video I/O selection including 2x 3G-SDI outputs, 2x 3G-SDI inputs, 2x VGA independent outputs.

The MAG2A IO Mission Computer includes a number of standard I/O such as 3x Gigabit Ethernet ports, 2x USB 2.0 ports, 1x USB 3.0 port, 4x serial COM (RS232/RS422/RS485) and up to 4 configurable digital I/O are also available.

The MAG2A IO can be configured with additional I/O functions from a list of selected modules, such as COM ports, CAN bus (with ARINC 825 support), GbE ports, analog video inputs, 1553 and ARINC429 interfaces. The MAG2 IO can host a further internal 2.5” Serial-ATA III SSD with the capability of triggering a hardware Secure Erase signal.

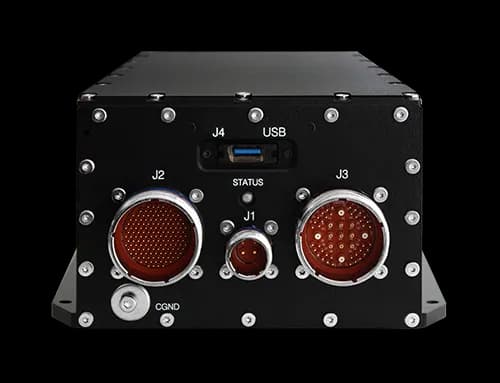

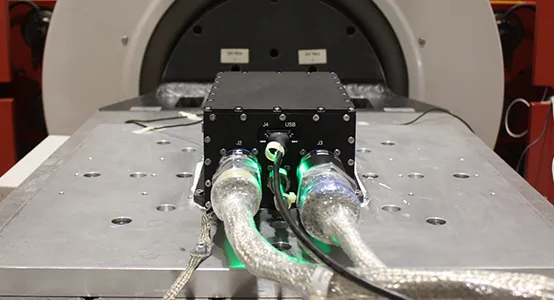

MAG series Mission Computers employ conduction cooled cards inside a sealed chassis, using baseplate cooling for heat dissipation. The MAG2A IO Mission Computer is qualified according to RTCA/DO-160G standards, ensuring robust performance in the most extreme conditions.
